Producător: TEXA industries

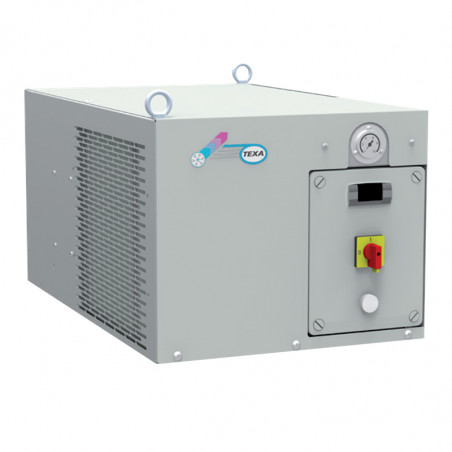

Răcitoare pentru răcirea cu apă seria 5 TCW

Coolers for water cooling series 5 - TCWD4-G8



Cooling power range 41400 - 75200 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable.
Compressor Hermetically closed compressor with thermal protection and oil level indicator.
Cooling circuit Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R410a.
Evaporator Plate heat exchanger with icing protection and differential pressure switch.
Condenser High efficient, spiral exchanger with ribs, protected with steel net.
Axial fan Protected thermally and with metal net.
Hydraulic circuit Consist of electric pump, plastic water container, valve, manometr 0-10 bar. Evaporator is protected with flow sensor.
Temperature control Done by the microprocessor controller TX300, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.


Dimensions

Chłodnice, Chillery do chłodzenia wody serii 5 TCW wymiar

Technical data

Type TCW D4 TCW E0 TCW E4 TCW F7 TCW G8
Nominal cooling power [W] 41400 46100 56600 65600 75200
Ambient temperature range [°C] +15 ÷ +45
Water temperature range [°C] +8 ÷ +25
Cooling liquid R410A
Power supply [V/Hz] 400V 3f / 50
Power [W] 22400 24300 27800 31500 34900
Pump
Water flow [l/min] 115,0/210,0 130,0/210,0 160,0/210,0 185,0/400,0 215/400,0
Water pressure [bar] 3,5 3,4 3,2 3,2 3,0
Container capacity [l] 240,0
Water terminal [BPS] 2” 2” 2” 2" 1/2 2" 1/2
Weight [kg] 430,0 460,0 470,0 500,0 550,0
