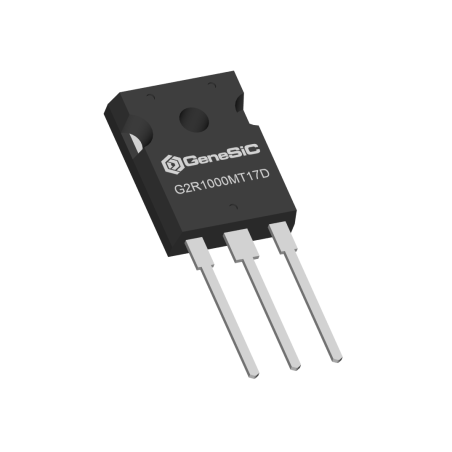

Tranzistor MOSFET SiC G2R1000MT17D
  • Tranzistor MOSFET SiC G2R1000MT17D

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Tranzistor MOSFET SiC G2R1000MT17D

  • G2R1000MT17D
  • Tipul locuinței TO-247-3
  • Curent continuu ID la Tc=25oC 5 A
  • Curent continuu IC la Tc=100oC
  • RDS(ON) pentru VGS = 18 V 1000 mΩ
  • RDS(ON) pentru VGS = 15 V -
  • Voltaj UDS 1200 V

The "G2R1000MT17D" SiC MOSFET transistor is made using GeneSiC's patented Trench-Assisted Planar technology.

Features:

  • Low Temperature Coefficient of RDS(ON)
  • Lower QG and Smaller RG(INT)
  • Low Device Capacitances (COSS, CRSS)
  • LoRing – Electromagnetically Optimazed Design
  • Robust Body Diode with Low VF and Low QRR
  • 100% Avalanche (UIL) Tested

Applications:

  • Solar Inverters
  • EV/HEV Charging
  • Motor Drives
  • High Voltage DC-DC Converters
  • Switched Mode Power Supplies
  • UPS
  • Smart Grid Transmission and Distribution
  • Induction Heating and Welding

Trimite o cerere

Sunteți interesat de acest produs? Aveți nevoie de informații suplimentare sau de prețuri individuale?

Contactează-ne
CERETI PRODUSUL close
Vă mulțumim că ați trimis mesajul dvs. Vom răspunde cât mai curând posibil.
CERETI PRODUSUL close
Naviga

Adaugă la lista de dorințe

trebuie să fii logat

  • Tipul locuinței TO-247-3
  • Curent continuu ID la Tc=25oC 5 A
  • Curent continuu IC la Tc=100oC
  • RDS(ON) pentru VGS = 18 V 1000 mΩ
  • RDS(ON) pentru VGS = 15 V -
  • Voltaj UDS 1200 V

The "G2R1000MT17D" SiC MOSFET transistor is made using GeneSiC's patented Trench-Assisted Planar technology.

Features:

  • Low Temperature Coefficient of RDS(ON)
  • Lower QG and Smaller RG(INT)
  • Low Device Capacitances (COSS, CRSS)
  • LoRing – Electromagnetically Optimazed Design
  • Robust Body Diode with Low VF and Low QRR
  • 100% Avalanche (UIL) Tested

Applications:

  • Solar Inverters
  • EV/HEV Charging
  • Motor Drives
  • High Voltage DC-DC Converters
  • Switched Mode Power Supplies
  • UPS
  • Smart Grid Transmission and Distribution
  • Induction Heating and Welding
