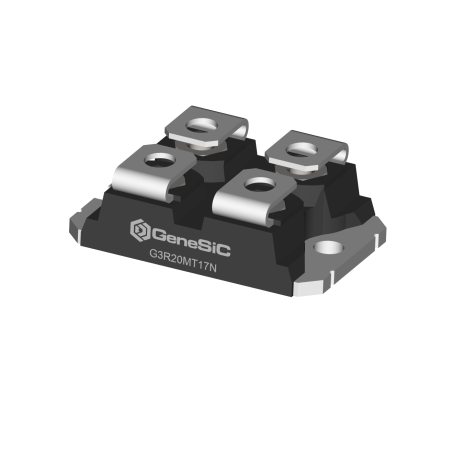

Tranzistor MOSFET SiC G3R20MT17N

  • G3R20MT17N
  • Tipul locuinței SOT-227
  • Curent continuu ID la Tc=25oC 84 A
  • Curent continuu IC la Tc=100oC 60 A
  • RDS(ON) pentru VGS = 18 V -
  • RDS(ON) pentru VGS = 15 V 20 mΩ
  • Voltaj UDS 1700 V

The "G3R20MT17N" SiC MOSFET transistor is made using GeneSiC's patented Trench-Assisted Planar technology.

Features:

  • Low Temperature Coefficient of RDS(ON)
  • Lower QG and Smaller RG(INT)
  • Low Device Capacitances (COSS, CRSS)
  • LoRing – Electromagnetically Optimazed Design
  • Robust Body Diode with Low VF and Low QRR
  • 100% Avalanche (UIL) Tested

Applications:

  • Solar Inverters
  • EV/HEV Charging
  • Motor Drives
  • High Voltage DC-DC Converters
  • Switched Mode Power Supplies
  • UPS
  • Smart Grid Transmission and Distribution
  • Induction Heating and Welding
