Tranzistor MOSFET SiC G3R40MT12K
  • Tranzistor MOSFET SiC G3R40MT12K

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

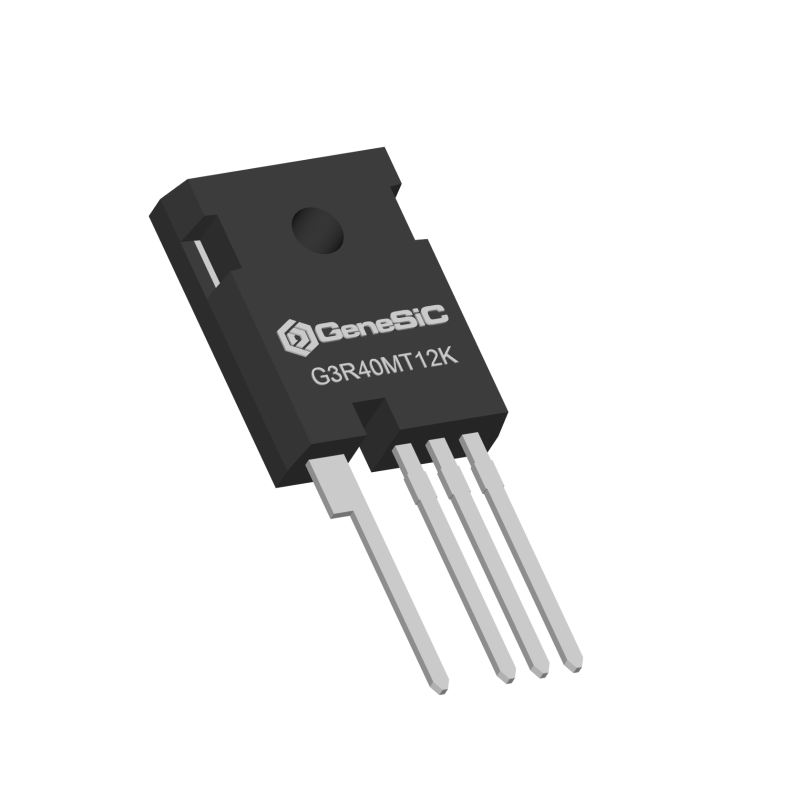

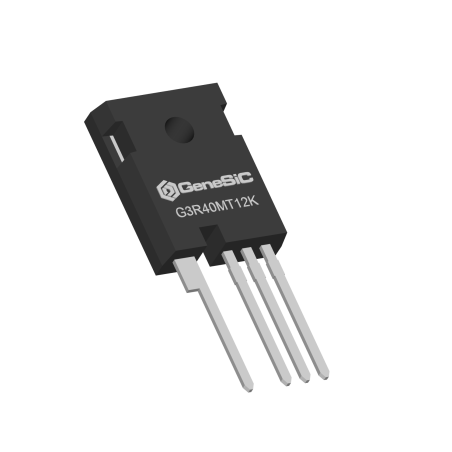

Tranzistor MOSFET SiC G3R40MT12K

  • G3R40MT12K
  • Tipul locuinței TO-247-4
  • Curent continuu ID la Tc=25oC 69 A
  • Curent continuu IC la Tc=100oC
  • RDS(ON) pentru VGS = 18 V 34 mΩ
  • RDS(ON) pentru VGS = 15 V 40 mΩ
  • Voltaj UDS 1200 V
Nou

The "G3R40MT12K" SiC MOSFET transistor is made using GeneSiC's patented Trench-Assisted Planar technology.

Features:

  • Low Temperature Coefficient of RDS(ON)
  • Lower QG and Smaller RG(INT)
  • Low Device Capacitances (COSS, CRSS)
  • LoRing – Electromagnetically Optimazed Design
  • Robust Body Diode with Low VF and Low QRR
  • 100% Avalanche (UIL) Tested

Applications:

  • Solar Inverters
  • EV/HEV Charging
  • Motor Drives
  • High Voltage DC-DC Converters
  • Switched Mode Power Supplies
  • UPS
  • Smart Grid Transmission and Distribution
  • Induction Heating and Welding
71,34 PLN
71,34 PLN Preț brut / buc.
58,00 PLN Preț net / buc.
cu TVA
Disponibilitate: Disponibil cantitate buc: 72
1-2 zile Lorem ipsum dolor sit amet, consectetur
CERETI PRODUSUL close
Vă mulțumim că ați trimis mesajul dvs. Vom răspunde cât mai curând posibil.
CERETI PRODUSUL close
Naviga

Adaugă la lista de dorințe

trebuie să fii logat

  • Tipul locuinței TO-247-4
  • Curent continuu ID la Tc=25oC 69 A
  • Curent continuu IC la Tc=100oC
  • RDS(ON) pentru VGS = 18 V 34 mΩ
  • RDS(ON) pentru VGS = 15 V 40 mΩ
  • Voltaj UDS 1200 V
Nou

The "G3R40MT12K" SiC MOSFET transistor is made using GeneSiC's patented Trench-Assisted Planar technology.

Features:

  • Low Temperature Coefficient of RDS(ON)
  • Lower QG and Smaller RG(INT)
  • Low Device Capacitances (COSS, CRSS)
  • LoRing – Electromagnetically Optimazed Design
  • Robust Body Diode with Low VF and Low QRR
  • 100% Avalanche (UIL) Tested

Applications:

  • Solar Inverters
  • EV/HEV Charging
  • Motor Drives
  • High Voltage DC-DC Converters
  • Switched Mode Power Supplies
  • UPS
  • Smart Grid Transmission and Distribution
  • Induction Heating and Welding
