Spirală, fire de cupru (singură)

For use in hazardous areas according to DIN EN 60079-14

General Information

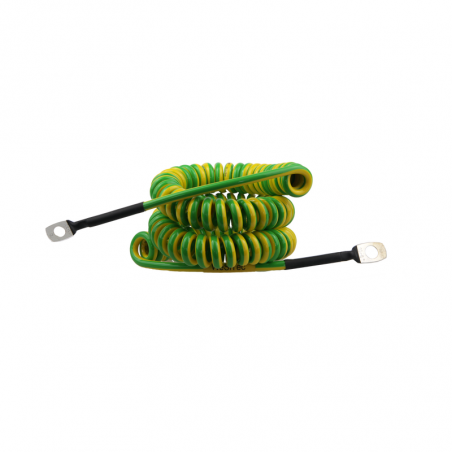

The copper spiral cables from WeSiTec offer extremely high flexibility. The copper core used consists of 226 individual copper strands, which minimize the risk of cable breakage. The cable coating protects well against acids, alkalis, mineral oils, greases and other chemicals. The spiral cables meet all requirements of the standards DIN EN 60079-0 and DIN EN 60079-14 and may be used accordingly in explosive areas. The spiral cables are free of silicone.

Technical Data

Cable type: LIF11Y11Y, 226x0,15mm
Cable color: green/yellow
Cross section: 4 mm 2 / 2,5 mm 2
Wire type: copper
Ambient temperature: -40°C...+80°C
Side A + B: each 150 mm tangent

The cable ends can be assembled with eyelets at no extra charge.
