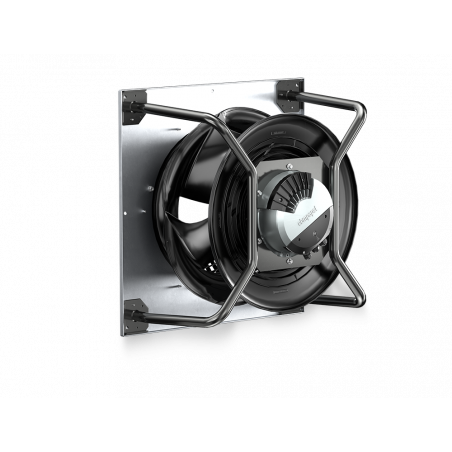

Ventilator centrifugal RadiPac

RadiPac

RadiPac is much more powerful than its predecessors, it is also especially energy-efficient, quiet, compact and intelligent. Simply benchmark, whichever way you turn it.

The highlights at a glance:

• Air flow up to 20,000 m³/h and pressures over 2,000 Pa
• Temperature range from -25 °C to +40 °C
• GreenTech EC motors from 500 W to 8 kW and a configurable control interface for analog and digital signals
• All versions are also available as a compact short version
• For the first time, an important intelligent feature of the new RadiPac is included as standard: automatic resonance detection.

Benchmark down to the last detail:

Support plate

• Robust sheet metal design
• Sendzimir galvanized sheet steel
• Easy installation in AHU

Impeller

• Innovative geometry reduces flow losses
• Corrugated cover plate for the best possible filling level
• Low noise emissions
• High-strength composite material

Inlet ring

• Made of composite material
• Pre-installed
• Perfectly tuned to the impeller
• Low losses

GreenTech EC motor

• Unbeatably compact
• High efficiency
• Economical operation
• Low noise emissions
• Long service life

Electronics and connection area

• Adaptable thanks to configurable control interface
• Universally deployable
• Increased operational reliability
• Simple commissioning
• Easy to replace
