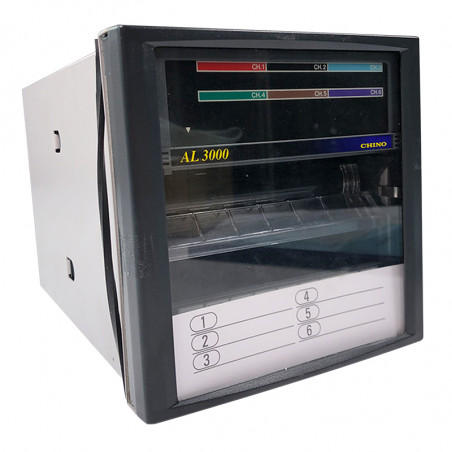

Temperature recorder AL3000 series

Temperature recorders AL3000 series are devices that allow to keep history of process temperature variation. They are available in two hardware versions - 6 channel recorder and 1,2,3 or 4 channel recorder. The history of temperature variation is recorded on 100mm paper tape and the temperature from each channel is displayed continuously on the recorder's screen. The device takes and saves the measured temperature values simultaneously from all channels. The universal inputs of the recorder allow the connection of 56 different measurement signals: 10 voltage ranges, 35 types of thermocouples and 11 different resistance sensors. Each of these signals can be programmed to any input channel.

The recorder can be equipped with a communication interface, which allows for controlling and downloading measurement data from the device with a PC. The software allows to change input parameters (ranges, scale, temperature units, alarms), printing properties (tape speed, printing area, type of printing: continuous or spot), setting the clock and setting communication parameters (protocol and data frame). The collected measurement data can be easily exported to other data processing applications.

The recorder can be additionally equipped with 6 outputs acting as alarms intended for a given input channel to signal exceeding the programmed temperature values. The recorders are made according to the newest microprocessor technologies and fulfill all European standards.

Technical information about temperature recorders AL3000 series

Product number

Technical data - Temperature recorder AL3000 series

Input

Dimensions [mm]

Input type Range Response range Accuracy Resolution Thermocouples K -200...+300°C ±13,8mV ±0,1% ±1 cyfra 0,1°C -200...+600°C ±27,6mV 0,1°C -200...+1370°C ±69,0mV 1°C E -200...+200°C ±13,8mV 0,1°C -200...+350°C ±27,6mV 0,1°C -200...+900°C ±69,0mV 1°C J -200...+250°C ±13,8mV 0,1°C -200...+500°C ±27,6mV 0,1°C -200...+1200°C ±69,0mV 1°C R 0...1200°C ±13,8mV 1°C 0...1760°C ±27,6mV ±0,15% ±1 digit 1°C S 0...1300°C ±13,8mV 1°C 0...1760°C ±27,6mV 1°C B 0...1820°C ±13,8mV 1°C N -200...+250°C ±13,8mV ±0,15% ±1 digit 0,1°C -200...+500°C ±27,6mV 0,1°C -200...+1200°C ±69,0mV 1°C W-WRe26 0...2315T ±69mV 1°C WRe5-WRe26 0...2315T ±69mV ±0,2% ±1 digit 1°C PtRh40-PtRh20 0...1880°C ±13,8mV 1°C NiMo-Ni -200...+250°C ±13,8mV 0,1°C -200...+500°C ±27,6mV 0,1°C -200...+1200°C ±69,0mV 1°C CR-AuFe 0...280K ±13,8mV 0,1 K Platinel II -200...+250°C ±13,8mV ±0,15% ±1 digit 0,1°C -200...+500°C ±27,6mV 0,1°C -200...+1200°C ±69,0mV 1°C U -200...+250°C ±13,8mV 0,1°C -200...+500°C ±27,6mV 0,1°C -200...+1200°C ±69,0mV 0,1°C L -200...+250°C ±13,8mV ±0,1% ±1 digit 0,1°C -200...+500°C ±27,6mV 0,1°C -200...+1200°C ±69,0mV 1°C T -200...+250°C ±13,8mV 0,1°C -200...+400°C ±27,6mV 0,1°C Thermoresistors Pt100(1) -140...+150°C 160Ω ±0,15% ±1 digit 0,1°C -200...+300°C 220Ω 0,1°C -200...+850°C 400Ω ±0,1% ±1 digit 0,1°C Pt100(2) -140...+150°C 160Ω ±0,15%±1 digit 0,1°C -200...+300°C 220Ω 0,1°C -200...+850°C 400Ω ±0,1% ±1 digit 0,1°C JPt100 -140...+150°C 160Ω ±0,15%±1 digit 0,1°C -200...+300°C 220Ω 0,1°C -200...+850°C 400Ω ±0,1% ±1 digit 0,1°C Pt50 -200...649°C 220Ω ±0,1% ±1 digit 0,1°C Pt-Co 4...374K 220Ω ±0,15%±1 digit 0,1K Constant Voltage -13,8...+13,8mV ±13,8mV ±0,1% ±1 digit 10mV -27,6...+27,6mV +27,6mV 10mV -69,0...+69,0mV ±69,0mV 10mV -200...+200mV ±200mV 100mV -500...+500mV ±500mV 100mV -2...+2V ±2V 1mV -5...+5V ±5V 1mV -10...+10V ±10V 10mV -20...+20V ±20V 10mV -50...+50V ±50V 10mV Direct Current depending on shunt resistor
