Producător: Deeter Electronics Ltd

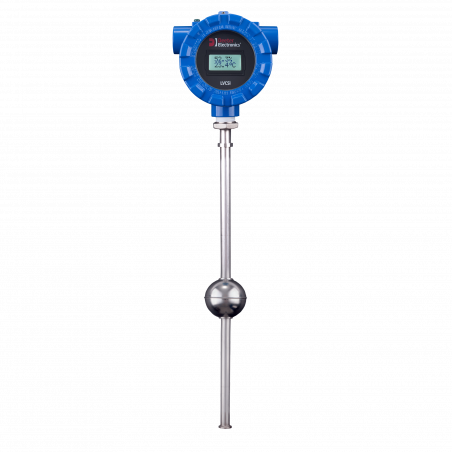

Traductor la nivel LVCSI cu afișaj

The LVCSi is a vertically mounted level transmitter with analog output. It has an integrated display. The sensor is an extension of the LVCS family of analog level sensors. As an option, it has the ability to monitor the temperature of the liquid. The sensor has a magnetic float on a vertical measuring tube. Inside the tube there are magnetic sensors enabling continuous measurement with an analog output signal. Standard LVCSi is designed to allow installation in a 21mm diameter hole and has a '' BSP thread. Measurement resolution 5mm with available ranges from 250mm to 2000mm (every 25cm). For other measuring ranges, please send an inquiry.

  • Integrated display for reading the level.
  • 2 channels output signal (4-20mA and 0-10V).
  • Two digital outputs (switching points)
  • RS485 communication
  • Temperature measurement option
  • IP68 protection class
  • Measuring range up to 2000mm
