Seria CWT LF cu o frecvență redusă este special concepută pentru măsurarea și înregistrarea curenților cu schimbare lentă. Este ideal pentru vizualizarea semnalelor de 50 / 60Hz și înregistrarea impulsurilor de curent de lungă durată. Bobine cu dimensiuni standard (CWT), precum și versiuni pentru aplicații în locuri greu accesibile din circuitul electric (CWT mini) sunt disponibile. Ieșirea de tensiune BNC permite conectarea directă la un osciloscop sau alt dispozitiv de înregistrare. | |
Date tehnice: Interval de măsurare |
|
Dimensiunea standard a bobinei | |||||||||
---|---|---|---|---|---|---|---|---|---|
Tip | Sensibilitate [mV/A] | Curent max [kA] | Curent maxim de creștere di/dt [kA/μs] | Zgomot maxim [mVpk-pk] | Overhang* [%/ms] | Lățime de bandă LF(3dB) [Hz] |
Avansul de fază pentru 50Hz [o] |
Lățime de bandă HF [MHz] (3dB) |
|
300[mm] | 700[mm] | ||||||||
CWT03LF |
100 | 0.06 | 0.4 | 15.0 | 4.6 | 5.1 | 8.3 | 6.5 | 3.0 |
CWT06LF |
50 | 0.12 | 0.8 | 15.0 | 2.3 | 2.6 | 4.2 | 6.5 | 3.0 |
CWT1LF |
20 | 0.3 | 2.0 | 15.0 | 1.0 | 1.0 | 1.8 | 6.5 | 3.0 |
CWT3LF |
10 | 0.6 | 4.0 | 15.0 | 0.5 | 0.55 | 0.85 | 6.5 | 3.0 |
CWT6LF |
5.0 | 1.2 | 8.0 | 15.0 | 0.25 | 0.27 | 0.45 | 6.5 | 3.0 |
CWT15LF |
2.0 | 3.0 | 11.0 | 15.0 | 0.1 | 0.11 | 0.18 | 6.5 | 3.0 |
CWT30LF |
1.0 | 6.0 | 11.0 | 15.0 | 0.05 | 0.055 | 0.09 | 6.5 | 3.0 |
CWT60LF |
0.5 | 12.0 | 11.0 | 15.0 | 0.025 | 0.022 | 0.045 | 6.5 | 3.0 |
CWT150LF |
0.2 | 30.0 | 11.0 | 15.0 | 0.01 | 0.011 | 0.018 | 6.5 | 3.0 |
CWT300LF |
0.1 | 60.0 | 11.0 | 10.0 | 0.007 | 0.008 | 0.012 | 6.5 | 3.0 |
CWT600LF |
0.05 | 120.0 | 11.0 | 5.0 | 0.007 | 0.008 | 0.012 | 6.5 | 3.0 |
CWT1500LF |
0.02 | 300.0 | 11.0 | 4.0 | 0.007 | 0.008 | 0.012 | 10.5 | 5.0 |
Bobina miniatură (CWT mini) | |||||||||
100 [mm] | 200 [mm] | ||||||||
CWT03LF |
100 | 0.06 | 0.4 | 16.0 | 10.2 | 11 | 18.6 | 5.0 | 4.0 |
CWT06LF |
50 | 0.12 | 0.8 | 16.0 | 5.1 | 5.6 | 9.3 | 12.0 | 7.5 |
CWT1LF |
20 | 0.3 | 2.0 | 15.0 | 2.2 | 2.3 | 4.0 | 12.0 | 7.5 |
CWT3LF |
10 | 0.6 | 4.0 | 15.0 | 1.0 | 1.1 | 1.7 | 12.0 | 7.5 |
CWT6LF |
5.0 | 1.2 | 8.0 | 15.0 | 0.5 | 0.55 | 0.85 | 12.0 | 7.5 |
CWT15LF |
2.0 | 3.0 | 14.0 | 15.0 | 0.2 | 0.22 | 0.35 | 12.0 | 7.5 |
CWT30LF |
1.0 | 6.0 | 14.0 | 15.0 | 0.1 | 0.11 | 0.18 | 12.0 | 7.5 |
CWT60LF |
0.5 | 12.0 | 14.0 | 15.0 | 0.05 | 0.055 | 0.09 | 12.0 | 7.5 |
CWT150LF |
0.2 | 30.0 | 14.0 | 15.0 | 0.02 | 0.022 | 0.035 | 12.0 | 7.5 |
CWT300LF |
0.1 | 60.0 | 14.0 | 15.0 | 0.01 | 0.011 | 0.018 | 12.0 | 7.5 |
CWT600LF |
0.05 | 120.0 | 14.0 | 10.0 | 0.007 | 0.008 | 0.012 | 12.0 | 7.5 |
![]() |
|||
![]() |

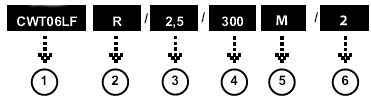

T
ip: |
![]() |
Circumferința bobinei:
CWT 300 - 300 mm CWT 500 - 500 mm CWT 700 - 700 mm CWT 1000 - 1000 mm CWT mini 100 - 100 mm CWT mini 200 - 200 mm |
![]() |
Sursa de alimentare: |
![]() |
Executie
[nic]-standard M - versiunea mini CWT |
![]() |
Lungimea cablului:
2,5 - 2,5m 4 - 4m |
![]() |
Izolaţie:
2 - 2kV (CWT mini) 5 - 5kV (CWT mini) 10 - 10kV (CWT) |
Sunteți interesat de acest produs? Aveți nevoie de informații suplimentare sau de prețuri individuale?
