Producător: M-SYSTEM

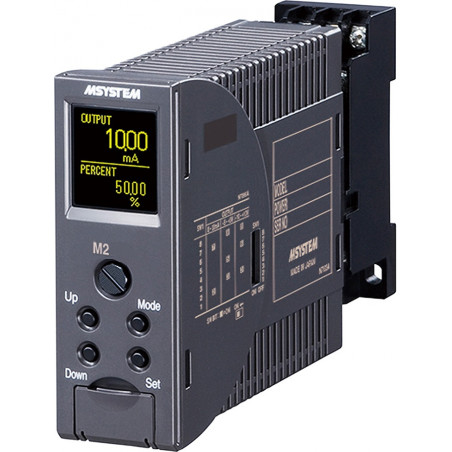

M2ext - Convertor de temperatură cu intrare termocuplă - configurabilă

  • M2EXT

M2EXT is a temperature converter with thermocouple input - configurable.


Features

  • AC / DC power
  • LED power indicator
  • OEL display
  • Programmable via PC
  • Provides standard analog output signal
  • DIN rail mounting
  • Isolation 2000V AC

Types of inputs: Thermocouple - K, E, J, T, B, R, S, N, U, L, P
Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC powered : 2000V AC
When powered by AC: 1500V AC
Ranges selection Programmable via PC
Double Output None < / td>
Power AC / DC
Operating temperature - 5 to + 55 ° C
Mounting DIN rail
Dimensions 29.5x83x124mm

Trimite o cerere

Sunteți interesat de acest produs? Aveți nevoie de informații suplimentare sau de prețuri individuale?

Contactează-ne
CERETI PRODUSUL close
Vă mulțumim că ați trimis mesajul dvs. Vom răspunde cât mai curând posibil.
CERETI PRODUSUL close
Naviga

Adaugă la lista de dorințe

trebuie să fii logat

M2EXT is a temperature converter with thermocouple input - configurable.


Features

  • AC / DC power
  • LED power indicator
  • OEL display
  • Programmable via PC
  • Provides standard analog output signal
  • DIN rail mounting
  • Isolation 2000V AC

Types of inputs: Thermocouple - K, E, J, T, B, R, S, N, U, L, P
Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC powered : 2000V AC
When powered by AC: 1500V AC
Ranges selection Programmable via PC
Double Output None < / td>
Power AC / DC
Operating temperature - 5 to + 55 ° C
Mounting DIN rail
Dimensions 29.5x83x124mm
