M2XT2 - Convertor de temperatură cu intrare termocuplă - configurabilă
  • M2XT2 - Convertor de temperatură cu intrare termocuplă - configurabilă

Fotografiile au doar scop informativ. Vizualizați specificațiile produsului

please use latin characters

Producător: M-SYSTEM

M2XT2 - Convertor de temperatură cu intrare termocuplă - configurabilă

  • M2XT2

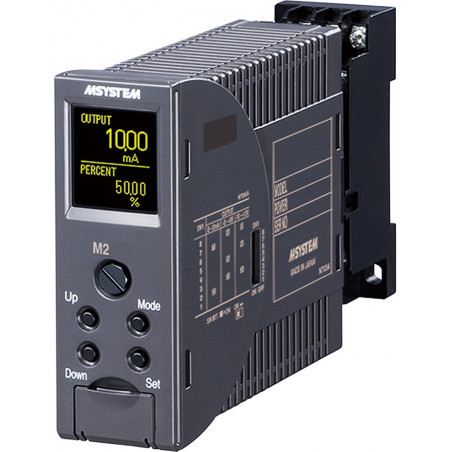

M2XT2 is a temperature converter with thermocouple input - configurable.


Features

  • AC / DC power
  • Mounting socket for each model - enables easy assembly / disassembly and quick conversion of converters without the need to interfere with the wiring
  • AC / DC power
  • Possible type of quick response
  • Programmable via PC
  • Provides standard analog output signal
  • DIN rail mounting
  • 2000V AC insulation
  • Perfect as spare part

Kinds of inputs: Thermocouple - K, E, J, T, B, R, S, N, U, L, P
Kinds of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on special request.


< tr>
Connection wires M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Ranges selection Programmable via PC
Double out None
Power AC / DC
Working temperature - 30 to + 60 ° C
Mounting DIN rail
Dimensions 23x76x124mm
mai puțin
Citeste mai mult

Trimite o cerere

Sunteți interesat de acest produs? Aveți nevoie de informații suplimentare sau de prețuri individuale?

Contactează-ne
CERETI PRODUSUL close
Vă mulțumim că ați trimis mesajul dvs. Vom răspunde cât mai curând posibil.
CERETI PRODUSUL close
Naviga
trimite o anchetă

Adaugă la lista de dorințe

trebuie să fii logat

M2XT2 is a temperature converter with thermocouple input - configurable.


Features

  • AC / DC power
  • Mounting socket for each model - enables easy assembly / disassembly and quick conversion of converters without the need to interfere with the wiring
  • AC / DC power
  • Possible type of quick response
  • Programmable via PC
  • Provides standard analog output signal
  • DIN rail mounting
  • 2000V AC insulation
  • Perfect as spare part

Kinds of inputs: Thermocouple - K, E, J, T, B, R, S, N, U, L, P
Kinds of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on special request.


< tr>
Connection wires M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
AC: 1500V AC
Ranges selection Programmable via PC
Double out None
Power AC / DC
Working temperature - 30 to + 60 ° C
Mounting DIN rail
Dimensions 23x76x124mm
