Producător: HotCold S.C.

Traductoare de concentrare CO2

CO2 concentration transmitters

CO2 transmitter based on MHZ14 sensor, with RS-485 interface with built-in MODBUS RTU protocol, with analog output in 0...10V standard.

The transmitter is designed to measure CO2 concentration. Available casing versions for wall and duct mounting.

Technical data:
  • Analog output: 0...10V.
  • Range of CO2: 0...2000 ppm.
  • LED operation indication.
  • Serial interface RS-485 (reading of measurement values, configuration of working parameters), protocol MODBUS RTU.
  • Communication in HALF DUPLEX mode.
  • Hardware configurable address (1-127).
  • Hardware configurable speed (9600, 19200, 38400, 57600, 115200)

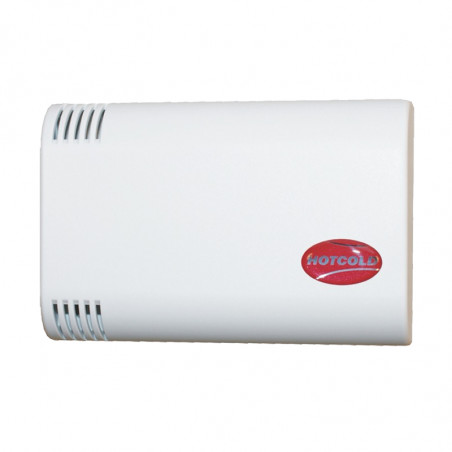

HTC-MODBUS-V-L
(wall mounting)




HTC-K-MODBUS-V-L
(duct mounting)

Trimite o cerere

Sunteți interesat de acest produs? Aveți nevoie de informații suplimentare sau de prețuri individuale?

Contactează-ne
CERETI PRODUSUL close
Vă mulțumim că ați trimis mesajul dvs. Vom răspunde cât mai curând posibil.
CERETI PRODUSUL close
Naviga

Adaugă la lista de dorințe

trebuie să fii logat

CO2 concentration transmitters

CO2 transmitter based on MHZ14 sensor, with RS-485 interface with built-in MODBUS RTU protocol, with analog output in 0...10V standard.

The transmitter is designed to measure CO2 concentration. Available casing versions for wall and duct mounting.

Technical data:
  • Analog output: 0...10V.
  • Range of CO2: 0...2000 ppm.
  • LED operation indication.
  • Serial interface RS-485 (reading of measurement values, configuration of working parameters), protocol MODBUS RTU.
  • Communication in HALF DUPLEX mode.
  • Hardware configurable address (1-127).
  • Hardware configurable speed (9600, 19200, 38400, 57600, 115200)


HTC-MODBUS-V-L
(wall mounting)




HTC-K-MODBUS-V-L
(duct mounting)
