SILIGAINE® 24C1 -60 ° C până la + 350 ° C

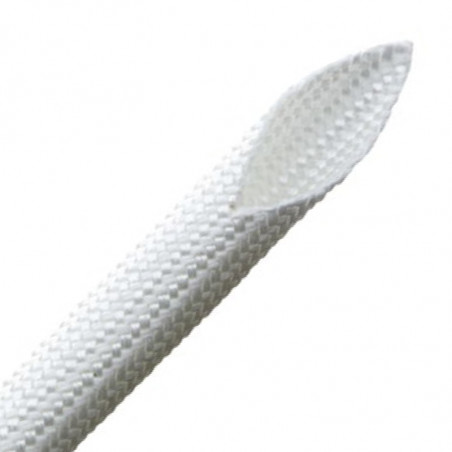

Fibreglass braid sleeving high temperature treated and impregnated with a silicone resin

General characteristics

• continuous operating temperature: -60°C to +350°C
• good mechanical strength
• self-extinguishing - meets the requirements of test VW-1 as per standard UL 1441
• the total desizing operation (elimination of oils and parasite products) gives SILIGAINE® 24C1 excellent thermal resistance up to +400°C at peak without smoke emission
• dielectric strength (dry): 0.8 to 1.2 kV

Standard products

• colour: white

Standards*

• IEC 60684-1 and 60684-2
• UL Approval, category UZIQ2: meets the requirements of the flame retardant test VW-1, file no. E212701

Packaging

• diameters from 0,5 to 4,5 mm: 200 m rolls
• diameters from 5 to 8 mm: 100 m rolls
• diameters from 9 to 12 mm: 50 m rolls
• diameters from 14 to 25 mm: 25 m rolls

Applications

• high temperature heating elements (bands, cartridges, etc.)
• domestic electrical heating appliances, cooking appliances
• all electrothermal machines (ovens, air ovens, etc.)
• sheathing of cable harnesses for cables subject to high temperature

Options

• other diameters: contact us
• other colours: contact us
• sleevings cut to length: contact us
• double braid sleeving up to diameter 10 mm: SILIGAINE® 24C2

(*) Our products comply with all or part of the requirements of standards quoted; contact us.
