Производитель: Ambrell

Закалка зубьев пил

Hardening the teeth of a large saw blade

Objective: Heating the teeth of a large saw blade for a hardening application; the objective is to reduce the heating time.

Equipment:

  • Ambrell EKOHEAT 30kW 50-150 kHz induction heating system equipped with a remote workhead containing eight 1.0 μF capacitors;
  • A multiple position two-turn helical induction heating coil designed and developed specifically for this application.

Frequency: 134 kHz

Material:

  • Section of the saw blade.

Temperature: 1650 ºF (899 ºC)

Testing:

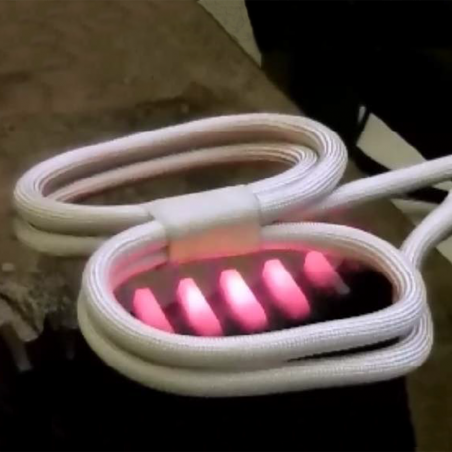

  • The coil was developed so that it would not concentrate heat in the outside edge valley of the tooth. The part was placed under the coil approximately 1/8” (3.2 mm) away and the power was turned on. With the 30 kW EKOHEAT power supply the part heated to temperature within the targeted rate of five teeth per four seconds.

Benefits:

  • Speed: The customer was already using induction, but wanted to upgrade to a higher power system to increase their production rate (Prior to first using induction from Ambrell, the client used a torch).
  • Precision and Repeatability: A torch isn’t as precise as induction nor is it repeatable, whereas induction can be implemented to be highly repeatable.
  • Efficiency: Induction uses less energy than a torch and offers instant on/off heating.
