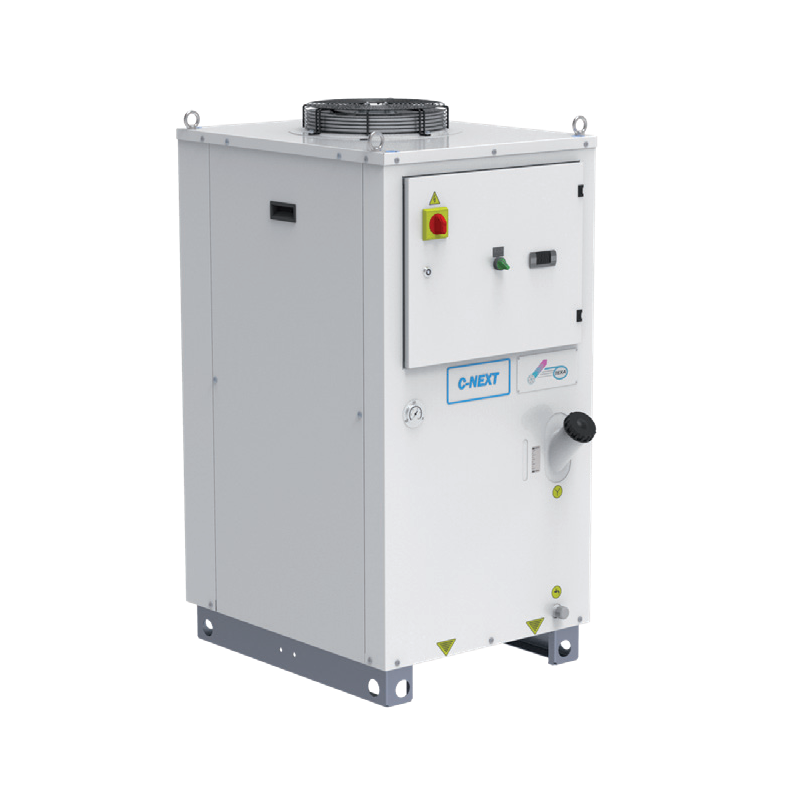

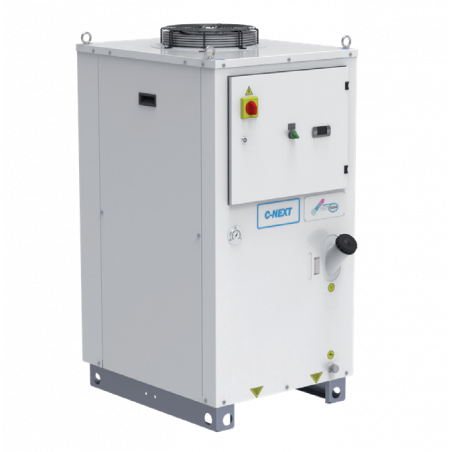

TAL24-37 Размер 1 Промышленные чиллеры

TAL24-37 Size 1

Industrial water chillers

Industrial water chillers

Finned high-efficiency copper tube condensing coil, complete with safety grille.

AXIAL FAN

Axial fan, complete with thermal cut-out and safety grille.

LIQUID CIRCUIT

Non-ferrous liquid circuit composed of peripheral electric pump, plastic storage tank complete with visual level indicator, 0-10 bar pressure gauge, protective flow switch, regulation sensor.

ELECTRICAL PANEL

With main disconnect switch, fused motor protection.

MANAGEMENT AND CONTROL

The TX110 control unit manages the chiller's operation, providing warnings including high/low temperature alarms and a general serious fault alarm, with the display indicating if this refers to the refrigeration or liquid circuit. An on-off contact allows the machine to be switched on remotely (pump included). Control disconnect switch for switching on the machine.

PAINT/COATING

Standard colour: RAL 7035 textured.

MAIN ACCESSORIES

BA - Mechanical bypass valve protecting the pump
LTA - Operation at low ambient temperatures
FP - Polyurethane air filter
RU - Castors
TD - Differential fluid temperature management (two sensors)
BGC - Hot gas bypass for +/- 1 K temperature precision
BGP - Hot gas bypass for +/- 0.5 K temperature precision
LS - Liquid circuit for laser application
UL1 - UL certified electrical panel and components
LTW - -10 - +5 water temperature range
- HIGH-pressure pump version "H" - 5 bar, version "R" - 7 bar.
- Outdoor installation optionals

STRUCTURE

In powder-coated steel sheet, RAL 7035 textured finish. Easily removed panels

COMPRESSOR

Hermetic reciprocating compressor, cooled by the refrigerant, complete with thermal cut-out.

REFRIGERATION CIRCUIT

Complete with charging port, drier filter, capillary, high-pressure safety pressure switch, R134a refrigerant.

EVAPORATOR

Brazed stainless-steel plate model.
