Кварцевые инфракрасные обогреватели типа ICH-401 (FQE)

Product Description

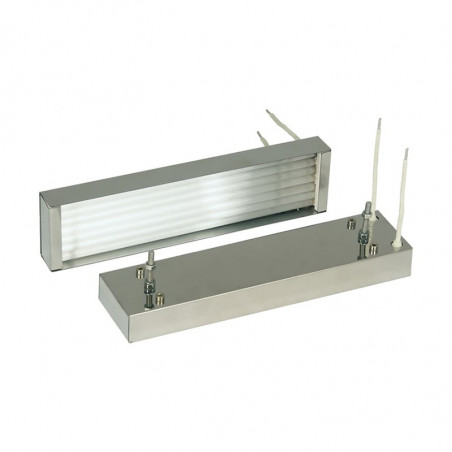

ICH-401 Full Quartz Infrared Heating Elements (FQE) is a cassette-style block of 7 full-lengths (228mm/~9inch) energy-efficient IR quartz emitters secured in a heat resistant stainless steel housing.

It is an instantly responding and a very efficient source of radiant heat. It can heat up in just 1-3 minutes and cool off in about 20 seconds. These emitters are essential tools for the processes that need an immediate heat-up and cool down, where the product could be damaged because of a heater remaining too hot after the power is cut off.

• Quartz lamp tube has a Fe-Cr-Al alloy resistance coil wire inside, and optionally a built-in thermocouple TXA (Chromel-Alumel) with type "K" power leads.
• ICH-401 quartz emitters (250 - 1,000w) produce infrared heating at the maximum allowed lamps temperature up to 730 °С, and surface radiation energy up to 6.0 W/cm.
• The average operating lifespan is above 7,000 hours.
• Supplied with standard 100 mm (4 inches) ceramic beaded power leads.

¹⁾ reached at ambient temperature from +18 to +25°C

Examples of Applications

ICH-400 series infrared quartz heaters are used for industrial and commercial heating systems. An instant heat response is required: thermoforming, drying chambers, infrared tunnels and panels, heating and drying conveyors, and program alternating power infrared soldering stations.

• Thermoforming
• Shrink packaging
• Vulcanizing and curing rubber
• Laminating
• Curing
• Sealing
• Fusing processes
• Space heaters
• Drying processes (moisture, paint, coatings, textiles, photos, and sand core castings)

Custom Optionsa

• Longer power leads.
• Custom voltage supply: 110 - 380V.
• Built-in (Type K Chromel-alumel) temperature control sensor: type TXA (K) thermocouple can be built into the emitter body to control the emitting surface temperature during heating.

After Service and Warranty

• Guaranteed service life expectancy: at least five years.
• Estimated life span at least 5,000 - 7,000 hours of non-stop operation.
• The manufacturer guarantees the product's compliance with the requirements of the current regulatory documentation, subject to the conditions of transportation, storage, installation, and operation.
• Warranty period: 12 months from the date of purchase.
• During the warranty period, the consumer can have the faulty emitter replaced at the place of the purchase.
• The warranty does not apply to the emitters having mechanical damage due to other signs of violation of transportation, storage, and operation rules.

Dimensions
