Производитель: Palazzoli

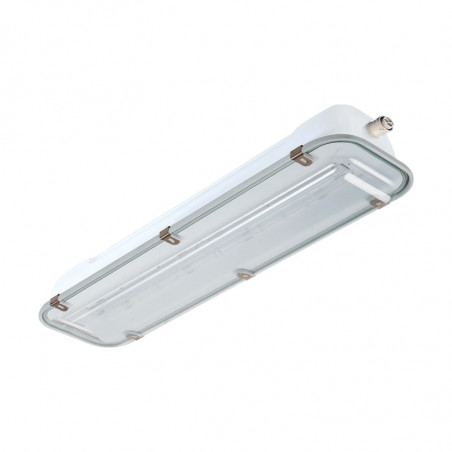

Линейное светодиодное освещение Rino P841192EX

Lighting characteristics

Output flux 3562 lm
Luminous flux (TJ=25°C) 4100 lm
Luminaire power 26
Output efficiency 137 lm/W
Color temperature 4000 K
Optics type anti aging and UV resistant PMMA, lenses with efficiency>90% and transparency >95%
Optics symmmetrical wide comfort 88°
CRI CRI ≥ 80 (typical - tolerances according to EN62717)
Color shift 3 MacAdam Step
Photobiological risk EN 62471 RG0 – Exempt Group
UGR index <22
Flicker free <3%
Life time L80/B10 @50.000h Tq=25°C
Emergency function -
Emergency flux -


Electrical characteristics

Insulation Class I
Supply Voltage 220-240V~ - 180-240Vdc 0/50/60Hz
Control system/dimming standard on-off
Surge protection 2kV common mode/differential mode
Power factor >0,95
Hole type terminal block with cable gland M20
Conductor section max 1,5 mmq
Tightening diameter min 10 mm; max 14 mm


Equipment Included

Pair of stainless steel eyebol.



Mechanical characteristics

Manufacturing material stainless steel AISI 304
Treatment type natural finishing
Surface finishing -
Colour -
Diffuser type extraclear tempered glass 5 mm
Protection degree IP65
Shock resistance IK09 according to IEC/EN 62262
Corrosivity category C4 (ISO 9223)
Mounting system coppia golfari inox
Net weight 4957 g
Working environment temperature min.: -35°C; max.: +55°C
Warehousing temperature min.: -40°C; max.: +75°C


ATEX characteristics

ATEX application zone Zone 2, 21 and 22
Dust ATEX execution II 2D - Ex tb IIIC T85 °C Db
Gas ATEX execution II 3G - Ex ec mc IIC T5 Gc


Warranties, reference standards and directives

Warranty 2 years extendable to 7
Certification and approval marks CE, EX, IECEx
Directives 2014/34/EU (ATEX), 2011/65/EU (RoHS), 2014/30/EU (EMC), 2012/19/EU (WEEE)
Reference standards EN 62471:2008, EN 60598-1:2015/AC:2016, EN 60079-18/A1:2017, EN 61547:2009, EN 60598 1:2015, EN 62311:2008, EN 60598-1:2015/A1:2018, EN 60598-2-22:2014/AC:2015, EN 60598-2-22:2014, EN 60598-1:2015/AC:2015, EN 60598 1:2015/AC:2017, EN 60079-7:2015, EN 63000:2018, EN 60079-0:2018, EN 60079-31:2014, EN 55015:2013, EN 60598-2-24:2013, EN 62493:2015, EN 61000-3-3:2013, EN 61000-3-2:2014, EN 60079 18:2015, EN 60598-2-1:1989, IEC TR 62778:2014
