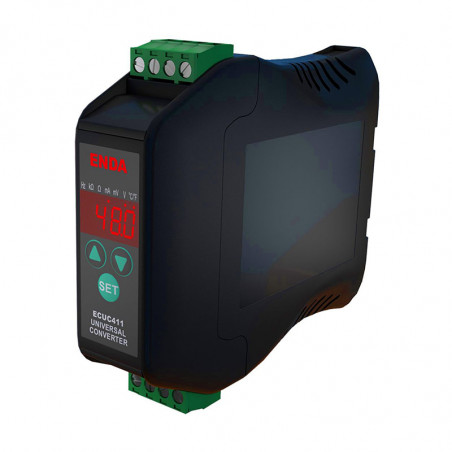

Конфигурируемый универсальный преобразователь ENDA ECUC411

  • 4 Digits LED display
  • Easily adjustable from buttons on the front panel
  • TC, RTD, NTC, Ω, kΩ, mA, V, mV or frequency inputs
  • Ambient temperature compensation
  • Zero point input shift
  • mA, V or frequency output selection
  • 24V DC Sensor supply (Specify at order)
  • 3-Way isolation between input, output and supply
  • Isolated RS485 Modbus RTU communication protocol feature (Specify at order)
  • Key lock feature
  • Rail mounted
  • Screw-terminal connections
  • CE Marked according to European Norms


Environmental Conditions

Ambient/Storage Temperature 0...50 ºC / -25...70 ºC (Must be no icing and no condensation in the environment)
Max. Relative Humidity Relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C (Must be no condensation in the enviroment)
Rates Pollution Degree IP20 according to EN 60529 standarts
Height Maximum 2000m


Electrical Characteristics

Input Type / Scale B (Pt30Rh-Pt6Rh) Thermocouple 200...1800°C / 392...3272°F
E (NiCr-Con) Thermocouple -100...900°C / -148...1652°F
J (Fe-Con) Thermocouple -100...900°C / -148...1652°F
K (NiCr-Ni) Thermocouple -100...1300°C / -148...2372°F
L (Fe-Con) Thermocouple -100...900°C / -148...1652°F
N (NiCrSi-NiSi) Thermocouple -200...1300°C / -328...2372°F
R (Pt13Rh-Pt) Thermocouple 0...1700°C / 32...3092°F
S (Pt10Rh-Pt) Thermocouple 0...1700°C / 32...3092°F
T (Cu-Con) Thermocouple -250...300°C / -418...572°F
U (Cu-Con) Thermocouple -200...400°C / -328...752°F
Pt-100 Resistance thermometer -200...850°C / -328...1562°F
NTC Resistance thermometer -60...150°C / -76...302°F
0-20mA, 4-20mA, 0-150mV, 0-5V, 1-5V, 0-10V, 0-550Ω, 0-10kΩ -999...9999 / -99,9...999,9 / -9,99...99,99 / -9,99...9,999
0-10kHz 0-9999
Accuracy B (Pt30Rh-Pt6Rh) Thermocouple %±0.1 ve ±2°C(3,6°F)
E (NiCr-Con) Thermocouple %±0.1 ve ±0,5°C(1°F)
J (Fe-Con) Thermocouple %±0.1 ve ±0,5°C(1°F)
K (NiCr-Ni) Thermocouple %±0.1 ve ±0,5°C(1°F)
L (Fe-Con) Thermocouple %±0.1 ve ±1.5°C(2,7°F)
N (NiCrSi-NiSi) Thermocouple %±0.1 ve ±0,5°C(1°F)
R (Pt13Rh-Pt) Thermocouple %±0.1 ve ±1°C(1.8°F)
S (Pt10Rh-Pt) Thermocouple %±0.1 ve ±1°C(1.8°F)
T (Cu-Con) Thermocouple %±0.1 ve ±0,5°C(1°F)
U (Cu-Con) Thermocouple %±0.1 ve ±0,5°C(1°F)
Pt-100 Resistance thermometer %±0.1 ve ±0,5°C(1°F)
NTC Resistance thermometer %±0.1 ve ±0,5°C(1°F)
0-20mA, 4-20mA %±0.1 ve ±1 digit
0-150mV %±0.1 ve ±20µV
0-5V, 1-5V, 0-10V %±0.1 ve ±1 digit
0-550Ω %±0.2 ve ±0.1Ω
0-10kΩ %±0.5 ve ±10Ω
0-10kHz %±0.5 ve ±1 digit
Input Impedance Ri > 3kΩ for Thermocouple B (Pt30Rh-Pt6Rh)
Ri > 3kΩ for Thermocouple E (NiCr-Con)
Ri > 3kΩ for Thermocouple J (Fe-Con)
Ri > 3kΩ for Thermocouple K (NiCr-Ni)
Ri > 3kΩ for Thermocouple L (Fe-Con)
Ri > 3kΩ for Thermocouple N (NiCrSi-NiSi)
Ri > 3kΩ for Thermocouple R (Pt13Rh-Pt)
Ri > 3kΩ for Thermocouple S (Pt10Rh-Pt)
Ri > 3kΩ for Thermocouple T (Cu-Con)
Ri > 3kΩ for Thermocouple U (Cu-Con)
Ri > 100kΩ for Pt-100 Resistance thermometer
Ri > 100kΩ for NTC Resistance thermometer
Ri > 50Ω for 0-20mA, 4-20mA
Ri > 3kΩ for 0-150mV
Ri > 3kΩ for 0-5V, 1-5V, 0-10V
Ri > 100kΩ for 0-550Ω, 0-10kΩ
Ri > 10kΩ for 0-10kHz
Supply For ECUC411-UV ; 60-250V AC, 50/60HZ / 85-300V DC
For ECUC411-LV ; 10-30V DC/8-24V AC, 50/60Hz
Power Consumption 7VA Max.
Wiring 2.5mm2 Screw-terminal connections
EMC EN 61326-1 - 2013
Outputs mA: 0-20mA DC or 4-20mA DC, % ±0,5 (Maximum load resistance 500Ω)
V: 0-10V DC, 0-5V DC or 1-5V DC, % ±0,5, Maximum 10mA (Short-circuit protection)
Frekans: 0-50kHz, % ±0,3 , 12V pulse


Housing

Housing Type Suitable for TH35 type rail mounting
Dimensions W25xH97xD115mm
Weight Approx. 150g after packing
Enclosure Material Self extinguishing plastics


Connection Diagram





Dimensions




Order Code

Product Basic Code Supply Voltage Sensor Supply Communication
ECUC411-UV 60-250V AC / 85-300V N/A N/A
ECUC411-LV 10-30V DC / 8-24V AC N/A N/A
ECUC411-UV-RS 60-250V AC / 85-300V N/A Modbus RS485
ECUC411-LV-RS 10-30V DC / 8-24V AC N/A Modbus RS485
ECUC411-UV-24 60-250V AC / 85-300V 24VDC N/A
ECUC411-LV-24 10-30V DC / 8-24V AC 24VDC N/A
ECUC411-UV-RS-24 60-250V AC / 85-300V 24VDC Modbus RS485
ECUC411-LV-RS-24 10-30V DC / 8-24V AC 24VDC Modbus RS485
