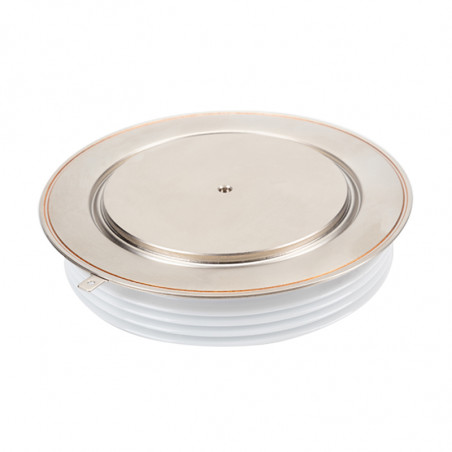

Dynex Diodes.
  • Dynex Diodes.

Фотографии предназначены только для информационных целей. Посмотреть спецификацию продукта

please use latin characters

Производитель: DYNEX POWER

Dynex Diodes.

Diodes

Type VRRM
[V]		 IF(AV) TC=100°C
[A]		 IFSM
VR=0
[kA]		 I2t VR = 0
[MA2s]		 Rth(j-c)
[°C/W]		 IFM
[A]		 VFM IFM [&]
T case = 25ºC [V]		 Dimensions
[mm]		 Casing
(Drawing No.)

DRD520T14

 1400 520 5.9 0.17405 0.08 800 1.45 42/19/13.5 T/DYN

DRD1360D14

 1400 1360 15.2 1.1552 0.035 1500 1.3 47/29/14.5 D/DYN

DRD1510G14

 1400 1510 16.8 1.4112 0.035 1500 1.2 58/34/26.5 G/DYN

DRD2770F14

 1400 2770 31 4.805 0.02 1500 1.05 75/47/26.5 F/DYN

DRD3220X14

 1400 3220 35.8 6.41 0.018 3000 1.15 85/53/26.5 X/DYN

DRD4650C14

 1400 4650 45 10.125 0.0125 3000 1.05 100/63/26.5 C/DYN

DRD6080V14

 1400 6080 60 18 0.01 3000 1.05 110/73/26.5 V/DYN

DRD410T22

 2200 410 4.9 0.12005 0.08 800 1.85 42/19/13.5 T/DYN

DRD990D22

 2200 990 12.5 0.78125 0.035 1500 1.60 47/29/14.5 D/DYN

DRD1100G22

 2200 1100 13.9 0.966 0.035 1500 1.45 58/34/26.5 G/DYN

DRD2030F22

 2200 2030 25.7 3.30245 0.02 1500 1.20 75/47/26.5 F/DYN

DRD2360X22

 2200 2360 29.8 4.44 0.018 3000 1.35 85/53/26.5 X/DYN

DRD3430C22

 2200 3430 42.2 8.9 0.0125 3000 1.20 100/63/26.5 C/DYN

DRD4460V22

 2200 4460 56.4 15.9048 0.01 3000 1.15 110/73/26.5 V/DYN

DRD6380W22

 2200 6380 78 30.42 0.007 6000 1.09 120/84/26.5 W/DYN

DRD6800A22

 2200 6800 94 44.18 0.0057 6000 1.03 150/100/35 A/DYN

DRD8880H22

 2200 8880 125 78.125 0.004 6000 0.98 172/110/35 H/DYN

DRD850D34

 3400 850 10.8 0.583 0.035 1500 1.95 47/29/14.5 D/DYN

DRD960G34

 3400 960 12 0.72 0.035 1500 1.7 58/34/26.5 G/DYN

DRD1830F34

 3400 1830 23 2.645 0.02 1500 1.35 75/47/26.5 F/DYN

DRD2050X34

 3400 2050 25.8 3.3282 0.018 3000 1.55 85/53/26.5 X/DYN

DRD2980C34

 3400 2980 36.5 6.66125 0.0125 3000 1.35 100/63/26.5 C/DYN

DRD3920V34

 3400 3920 49.5 12.25125 0.01 3000 1.25 110/73/26.5 V/DYN

DRD5240W34

 3400 5240 64.2 20.6082 0.007 6000 1.29 120/84/26.5 W/DYN

DRD6140A34

 3400 6140 84.4 35.6168 0.0057 6000 1.1 150/100/35 A/DYN

DRD7810H34

 3400 7810 118 69.62 0.004 6000 1.1 172/110/35 H/DYN

DRD870G40

 4000 870 15 1.125 0.032 1800 1.6 58.5/34/27 G/DYN

DRD1230F40

 4000 1225 25 3.125 0.022 3400 1.6 73/47/27 F/DYN

DRD2960Y40

 4000 2960 62.5 19.53 0.0095 3000 1.25 112.5/73/37.3 Y/DYN

DRD3390V40

 4000 3388 62.5 19.53 0.0075 3000 1.25 110/73/26.5 V/DYN

DRD4350A40

 4000 4350 83 34.5 0.007 3000 1.06 151/100/37.5 A/DYN

DRA170E44

 4400 170 1.5 0.01125 0.115 300 2.1 42/25/15 E/DYN

DRD2000L45

 4500 2000 31 3.92 0.013 3000 1.4 102/63/32.9 L/DYN

DRD6290H45

 4500 6290 99.4 49.4 0.004 6000 1.19 172/110/36 H/DYN

DRD1100F48

 4800 1105 20.5 2.125 0.022 3400 1.8 73/47/27 F/DYN

DRD710G50

 5000 710 11.5 0.66 0.032 1800 1.8 58.5/34/ 27 G/DYN

DRD2690Y50

 5000 2691 55 15.12 0.0095 3000 1.21 112.5/73/37.3 Y/DYN

DRD3080V50

 5000 3083 55 15.12 0.0075 3000 1.21 110/73/26.5 V/DYN

DRD3770A52

 5200 3768 70 24.5 0.0065 3000 1.17 148/100 /35.0 A/DYN

DRD5940H55

 5500 5940 93.60 43.8 0.004 6000 1.26 172/110/36 H/DYN

DRD630G60

 6000 630 10.5 0.555 0.032 1800 2.1 58.5/34/27 G/DYN

DRD1010F60

 6000 1015 16.5 1.425 0.022 3400 2.1 73/47/27 F/DYN

DRD5150H65

 6500 5150 82.5 34 0.004 6000 1.65 172/110/36 H/DYN

DRD4950H72

 7200 4950 79 31.2 0.004 6000 1.71 172/110/36 H/DYN

DRD4690H85

 8500 4690 74.5 27.75 0.004 6000 1.31 172/110/36 H/DYN

DRD560G90

 9000 557 7.65 0.29 0.032 1200 2.08 58/34/26.5 G/DYN
Fast diodes

Symbol VRRM
[V]		 IT (AV) TC= 65°C
[A]		 IFSM VR=0
[kA]		 I2t
V R = 0 (MA2s)		 IFM
[A]		 VF
[V]		 Qr
[µC]		 trr
[µs]		 Type of casing Dimensions
[mm]		 Casing
(Drawing No.)

DF451

 1600 295 3.5 0.061 600 2.65 25 1.22 T 42/19/15 M771/DYN

DSF8025SE

 2500 650 7.5 0.281 1000 2.3 540 5 E 42/25/15 E/ DYN,G/ DYN

DF051

 2500 1490 14 0.98 1500 1.85 800 5 F 75/47/29 CB450/DYN

DSF8045SK

 4500 430 3.5 0.061 1000 4 440 3.07 K 42/25/29 K/DYN

DSF20545SF

 4500 1250 16 1.28 1800 2.1 1250 7 F 75/47/29 CB450/DYN

DSF21545SV

 4500 3200 20 2 3000 2 1800 7 V 112.5/73/27 V/DYN

DSF11060SG

 6000 400 4.2 0.09 600 3.8 700 6 G 58/35/29 M779B/ DYN

Casing

Drawing A/DYN

Drawing E/DYN

Drawing D/DYN

Drawing G/DYN

Drawing C/DYN

Drawing F/DYN

Drawing H/DYN

Drawing V/DYN

Drawing T/DYN

Drawing X/DYN

Drawing L/DYN

Drawing W/DYN

Drawing CB450/DYN

Drawing E/DYN

Drawing K/DYN

Drawing M771/DYN

Drawing M779B/DYN

Drawing V/DYN
