Производитель: DACPOL SERVICE

Функциональные силовые блоки

Functional power blocks

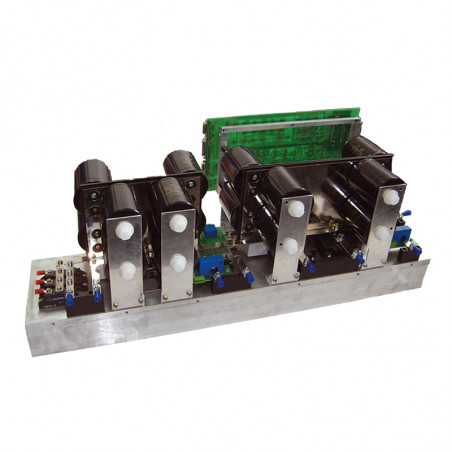

Power electronics power block - Universal power supply


Technical information

  • Block based on IGBT transistor modules;
  • Power supply 3x400 V, 50 Hz;
  • Control circuit provides high accuracy for voltage and current stabilization;
  • Power output up to 50 kW;
  • The power supply output is isolated from the power supply circuits.

Use:
Power electronics system using this block can work as:

  • Adjustable DC current source up to 6 kA;
  • Adjustable DC voltage source up to 80 kV;
  • Adjustable sinusoidal current source with low harmonic content and up to 4 kA;
  • Adjustable sinusoidal voltage source with low harmonic content up to 60 kV.

Attention:
The company offers power supplies with other parameters upon agreement with the customer.



Power electronics power block - DC power supply (Chopper)


Technical information

  • Block built using IGBT transistor modules;
  • Power supply 3x400 V, 50 Hz;
  • The control system provides voltage and current stabilization as well as power;
  • Continuous regulation of output voltage and current (power);
  • Output voltage 0 ÷ 500 V;
  • Output current 0 ÷ 400 A;
  • Output power up to 20 kW.

Use:
The power electronics system using this block can operate as:

  • Adjustable power source.

Attention:
The company offers power supplies with other parameters upon agreement with the customer.
