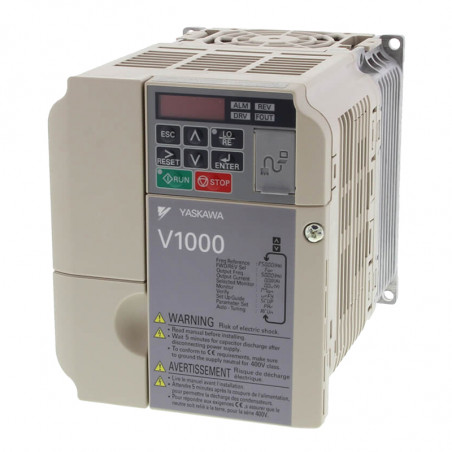

Инвертор VZ1000.

More performance [&] Quality in less space
• Current vector control
• High starting torque (200% / 0.5 Hz)
• 1:100 speed control range
• Double rating ND 120%/1min and HD 150%/1 min
• IM[&]PM motor control
• Online Tuning
• Low-noise Low carrier technology
• 10 years lifetime design
• Built-in filter
• Screw-less terminals
• Control Terminals with memory backup
• 24 VDC control board power supply option
• Fieldbus communications: Modbus, Profibus, CanOpen, DeviceNet, Lonworks, CompoNet, Ethernet, ML-II
• Safety embedded: EN954-1 safety cat. 3, EN6158 SIL II and EN60204-1 Stop category 0
• CE, UL, cUL and TUV

Ratings
• 200 V Class single-phase 0.1 to 4 kW
• 200 V Class three-phase 0.1 to 15 kW
• 400 V Class three-phase 0.2 to 15 kW

Specifications
Type designation

V V1000 series
Z
Z: European standard
specifications
A
A: Standard specs
B
Voltage:
B: Single-phase 200 VAC
2: Three-phase 200 VAC
4: Three-phase 400 VAC
O

P

1
[”P” indicates a decimal point]
Max. applicable motor output
0P1: 0.1 kW
~
015: 15 kW
B
Enclosure, Fin, Filter:
B: IP20 without top cover
F: Nema 1
E: IP20 without top cover and C3 filter
A
Coating specs:
A: Standard
A Version


200 V class

Single-phase:: VZ-@ B0P1 B0P2 B0P4 B0P7 B1P5 B2P2 B4P0 - - - -
Three-phase: VZ-@ 20P1 20P2 20P4 20P7 21P5 22P2 24P0 25P5 27P5 2011 2015
Motor [ kW]1 For HD setting 0,12 0,25 0,4 0,75 1,5 2,2 4,0 5,5 7,5 11 15
For ND setting 0,18 0,37 0,75 1,1 2,2 3,0 5,5 7,5 11 15 18,5
Output
characteristics		 Inverter capacity kVA 0,3 0,6 1,1 1,9 3,0 4,2 6,7 9,5 13 18 23
Rated output current (A) at HD 0,8 1,6 3,0 5,0 8,0 11,0 17,5 25,0 33,0 47,0 60,0
Rated output current (A) at ND 1,2 1,9 3,5 6,0 9,6 12,0 21,0 30,0 40,0 56,0 69,0
Max. output voltage Proportional to input voltage: 0..240 V
Max. output frequency 400 Hz
Power
supply		 Rated input voltage
and frequency		 Single-phase 200..240 V 50/60 Hz
3-phase 200..240 V 50/60 Hz
Allowable voltage
fluctuation		 -15% - +10%
Allowable frequency
fluctuation		 +5%


1) Based on a standard 4-pole motor for maximum applicable motor output:
Heavy Duty (HD) mode with a 150% overload capacity
Normal Duty (ND) mode with a 120% overlaod capacity

400 V class


Three-phase: VZ-@ 40P2 40P4 40P7 41P5 42P2 43PO 44P0 45P5 47P5 4011 4015
Motor [ kW]1 For HD setting 0,2 0,4 0,75 1,5 2,2 3,0 4,0 5,5 7,5 11 15
For ND setting 0,37 0,75 1,5 2,2 3,0 3,7 5,5 7,5 11 15 18,5
Output
characteristics		 Inverter capacity [kVA] 0,9 1,4 2,6 3,7 4,2 5,5 7,2 9,2 14,8 18 24
Rated output current (A) at HD 1,2 1,8 3,4 4,8 5,5 7,2 9,2 14,8 18 24 31
Rated output current (A) at ND 1,2 2,1 4,1 5,4 6,9 8,8 11,1 17,5 23 31 38
Max. output voltage 0..480V (proportional to input voltage)
Max. output frequency 400 Hz
Power
supply		 Rated input voltage
and frequency		 3-phase 380..480 VAC, 50/60 Hz
Allowable voltage
fluctuation		 -15% do +10%
Allowable frequency
fluctuation		 +5%
1)Based on a standard 4-pole motor for maximum applicable motor output:
Heavy Duty (HD) mode with a 150% overload capacity
Normal Duty (ND) mode with a 120% overlaod capacity.

Model number VZ-D Specifications
Control functions Control methods Sine wave PWM (V/f control, sensorless current vector control)
Output frequency range 0,1-400 Hz
Frequency tolerance Digital set value: ±0.01% (-10..+50 ºC)
  Analogue set value: ±0.1% (25 ±10 ºC)
Resolution of frequency set value Digital set value: 0.01 Hz (<100 Hz), 0.1 Hz (>100 Hz)
  Analogue set value: 1/1000 of maximum frequency
Resolution of output frequency 0.01 Hz 0,01 Hz
Overload capability Heavy duty use: 150% rated output current for one minute
Normal duty use: 120% rated output current for one minute
Frequency set value 0..10 V (20 kΩ), 4..20 mA (250 Ω), 0..20 mA (250 Ω)
Pulse train input, frequency setting value (selectable)
Braking torque
(short term peak torque)		 Short-term average deceleration torque: 150% (up 1.5 kW), 100% (for 1.5 kW), 50% (for 2.2 kW), 20% (fof bigger size)
Continous regenerative torque: Aprox 20% (125% with optional braking resistor, 10%ED, 10 s, braking transistor built itn)
V/f Characteristics Possible to program any V/f pattern
  Inputs signals Seven of the following input signals are selectable: Forward/reverse run (3-wire sequence), fault reset, external fault (NO/NC
contact input), multi-step speed operation, Jog command, accel/decel time select, external baseblock, speed search command,
UP/DOWN command, accel/decel hold command, LOCAL/REMOTE selection, communication/control circuit terminal
selection, mergency stop fault, emergency stop alarm, self test
Output signals Following output signals are selectable (NO/NC contact output, 2 photo-coupler outputs): Fault, running, zero speed, speed
agree, frequency detection (output frequency <= or => set value), during overtorque detection, minor error, during baseblock,
operation mode, inverter run ready, during fault retry, during undervoltage detection, reverse running, during speed search,
data output through communication.
Standard functions Open-loop vector control, full-range automatic torque boost, slip compensation, 17-step speed operation (max.), restart after
momentary power loss, DC injection braking current at stop/start (50% of inverter rated current, 0.5 sec, or less), frequency
reference bias/gain, MEMOBUS communications (RS-485/422, max. 115K bps), fault retry, speed search, frequency upper/
lower limit setting, overtorque detection, frequency jump, accel/decel time switch, accel/decel prohibited, S-curve accel/decel,
PID control, energy-saving control, constant copy.
Analogue inputs 2 analogue inputs, 0..10 V, 4..20 mA, 0..20 mA
Braking/acceleration times 0.01..6000 s
Display Optionally frequency, current or set value
  Error and status LED
    Motor overload protection Electronic thermal overload relay
Instantaneous overcurrent Motor coasts to a stop if DC bus voltage exceed 410 V (double for 400 V class)
Overload Heavy Duty: Motor coasts to a stop after 1 minute at 150% of inverter rated output current
Normal Duty: Motor coasts to a stop after 1 minute at 120% of inverter rated output current
Overvoltage Motor coasts to a stop if DC bus voltage exceed 410 V (double for 400 V class)
Undervoltage Stops when DC bus voltage is approx. 190 V or less (double for 400 V class)
(approx. 150 V or less for single-phase series)
Momentary power loss Following items are selectable: not provided (stop if power loss is 15 ms or longer), continuous operation if power loss is
approx. 0.5 s or shorter, continuous operation
Cooling fin overheat Protected by thermister
Stall prevention level Stall prevention level Stall prevention during acceleration/deceleration and constant speed operation
Ground fault Protected by electronic circuit (operation level is approx. 250% of rated output current)
  Power charge indication Indicates until the main circuit voltage reaches 50 V.
Degree of protection IP20, NEMA1
Cooling Cooling fan is provided for 200 V, 0.75 kW (1HP) (3/single-phase)
400 V, 1.5 kW (2HP) (3-phase), others are self-cooling
Ambient humidity 95% RH or less (without condensation)
Storage temperature -20 ºC..+60 ºC (short-term temperature during transportation)
Installation Indoor (no corrosive gas, dust, etc.)
Installation height Max. 1000 m Maks. 1000 m
Vibration Up to 9.8 m/s2 at 10 to less than 20 Hz, Up to 6.37 m/s2 at 20 to 50 Hz


Dimensions
IP 20 type 0,1 do 4 kW

Drawing 1
Drawing 2


Voltage class Max. applicable
motor output kW [kW]		 Inverter model VZA Drawing Dimensions in mm Masa
W1 H1 W H D tl H2 D1 H3 H4
Single-phase
200 V		 0,12 B0P1 1 56 118 68 128 76 3 5 6,5     0,6
0,25 B0P2 0,7
0,55 B0P4 108 5 38,5 1,0
1,1 B0P7 2 96 108 137,5 58 1,5
1 5 B1P5 154 1 5
2,2 B2P2 128 140 163 65 2,1
4,0 B4P0 W trakcie opracowania
Three-phase
200V		 0,12 30P1 1 56 118 68 128 76 3 5 6,5 - - 06
0,25 20P2 0,6
0,55 20P4 108 5 38,5 0,9
1 1 30P7 128 1 1
1,5 21P5 2 96 108 129 58 1,3
2,2 22P2 137,5 1,4
40 34P0 128 140 143 65 2,1
5,5 25P5 3 122 248 140 254 140 - 6 55 13 6,2 3,0
7,5 27P5 3,8
11 9011 160 284 180 290 163 8 75 15 5,5
15 2015 192 336 220 358 187 7 78   ' 9,2
Three-phase
400V		 0,37 40P2 2 96 118 108 128 81 5 5 10   - 0,8
0,55 40P4 99 78 1 0
1,1 40P4 137,5 58 1,4
1,5 41P5 154 1,5
3 3 43P3 1 5
3,0 43P0 1,5
4,0 44P0 128 140 143 65 2,1
5,5 45P5 3 122 248 140 254 140 " 6 55 13 6 3,8
7,5 47P5 6,2 3,8
11 4011 160 284 180 290 143 8 15 6 5,2
15 4015 163 75 5,5

V1000 + Option board (Communication and 24V DC power supply)
