Производитель: Cosel

DIN KLAA / KLNA источники питания

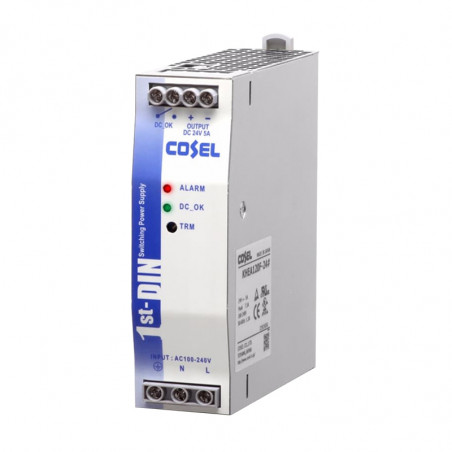

Basic function DIN rail power supplies series KLEA / KLNA

Cosel introduces you to the KL seriesof DIN Rail mounted powersupplies. The KL series has been developed forusers requiring a more basic function and cost effective solution and therefore compliments the already wellknown full function KH series. This new family of products offers users fulluniversal input voltage and 120W or240W output powerwith a choice of 24V or48V output voltages. Additional standard features also include built in OverCurrent Protection, OverVoltage Protection, ultra slim dimensons and a 5 yearwarranty! The DC OK Contact orRemote On/Off and therefore by removing these features, offers up to 40% cost saving compared with the same KH models. As with many Coselproducts, the KL series offers many required market saftey approvals including UL60950-1, EN60950-1, C-UL, UL508 as wellas meeting the CE Low Voltage Directive.

Technical data
  • DIN Rail Mounted AC-DC PowerSupply
  • AC85 264V orDC120 370V Input Voltage*
  • 24V [&] 48V output vol tages
  • 120W [&] 240W output power
  • -20°C to +70°C ope rating temperature
  • Up to 90% efficiency
  • 5 yearwarranty [&] No MOQ
  • Ultra slim width (120W = 38mm 240W = 50mm)
* external fuse is required when using DC input


Series KLEA120F / KLNA120F

Type Max output wattege [W] DC output
[V]		 Case size W x H x D
[mm]		 Weight
[g]

KLEA/KLNA120F-24

 120 24V 5A 38x124x117 580

KLEA/KLNA120F-48

 120 48V 2,5A

Series KLEA240F / KLNA240F

Type Max output wattege [W] DC output
[V]		 Case size W x H x D
[mm]		 Weight
[g]

KLEA/KLNA240F-24

 240 24V 5A 50x124x117 750

KLEA/KLNA240F-48

 240 48V 2,5A
