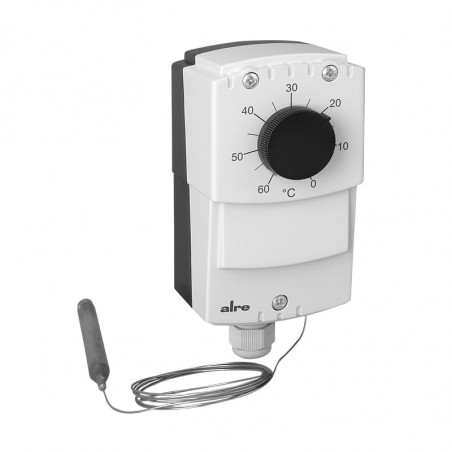

Одноступенчатые капиллярные термостаты JET-1

Application

Monitoring or control of temperatures of non-aggressive, liquid and gaseous media. Particularly suitable for wall mounting. The SW-200-12 protecting coil is to be used for temperature control of non-aggressive gases in ducts; for temperature control in non-aggressive fluids, use the TH immersion sleeve, and in aggressive fluids, the NTH immersion sleeve

Technical data

Housing colour: grey (lower part like RAL 7016, upper part like RAL 7035)
Sensor material: Cu (capillaries made from V2A)
Capillary length: 1.8 m (for types with “G” in the type specification: 4.5 m)
Ambient temperature: −20…+55 °C
Max. sensor temperature top scale value +15%
Permissible atmospheric humidity: Max. 95% rel. humidity, non-condensing
Operating voltage: none
Max. switching current: 10 (4) A
Min. switching current: 150 mA
Max. switching voltage: 230 VAC, 50 Hz
Min. switching voltage: 24 VAC, 50 Hz
Switching element: microswitch
Switching contact: toggler, potential-free
Electrical connection: screw-type terminals
Mounting/attachment: wall mounting
Protection rating: IP 65
Protection class: I
Safety and EMC: according to DIN EN 60730
Sensor: liquid-filled capillary
General features: scale: degrees Celsius, mechanical range restriction when external setting is used
Type Item no. Control range Hysteresis adjustable (approx.): Sensor a x l Features PG
JET-110X JA040100 −35…+30 °C 2…20 K 9.6 x 122 mm external setting/TR* II
JET-110XF JA040200 −35…+30 °C 2…20 K 9.6 x 122 mm internal setting/TW* II
JET-120X JA041100 0…60 °C 2…20 K 9.6 x 122 mm external setting/TR* II
JET-120XG JA041101 0…60 °C 2…20 K 9.6 x 122 mm external setting/TR* II
JET-120XF JA041200 0…60 °C 2…20 K 9.6 x 122 mm internal setting/TW* II
JET-130X JA042100 40…100 °C 2…20 K 9.6 x 122 mm external setting/TR* II
JET-130XG JA042101 40…100 °C 2…20 K 9.6 x 122 mm external setting/TR* II
JET-130XF JA042200 40…100 °C 2…20 K 9.6 x 122 mm internal setting/TW* II
JET-133X JA042300 40…100 °C 9.6 x 122 mm external setting/TB** II
JET-133XF JA042400 40…100 °C 9.6 x 122 mm internal setting/TB** II
JET-140X JA043100 70…130 °C 2…20 K 9.6 x 122 mm external setting/TR* II
JET-140XF JA043200 70…130 °C 2…20 K 9.6 x 122 mm internal setting/TW* II
JET-143XF JA043400 70…130 °C 9.6 x 122 mm internal setting/TB** II
JET-150 JA044100 100…280 °C 8…50 K 6 x 80 mm external setting/TR* II
JET-150F JA044200 100…280 °C 8…50 K 6 x 80 mm internal setting/TW* II
JET-153 JA044300 100…280 °C 6 x 80 mm external setting/TB** II
JET-153F JA044400 100…280 °C 6 x 80 mm internal setting/TB** II

TR = temperature controller, TW = temperature monitor, TB = temperature limiter

* Control function heating or cooling
** Control function heating or cooling, locks when temperature rises, manual reset after temperature fall of at least 8 K

Accessories

Immersion sleeves for types with “X” in the type specification: TH/NTH-140 see page 220
Immersion sleeves for types without “X” in the type specification: TH/NTH-100/200/280 see page 220
Protection coil for all types: SW-200-12 see page 218–219
