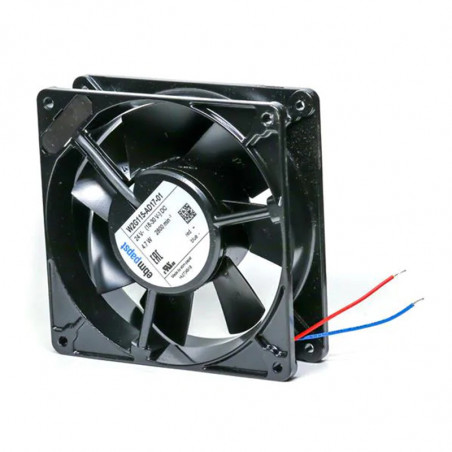

EBM Compact Faans.
  • EBM Compact Faans.

Фотографии предназначены только для информационных целей. Посмотреть спецификацию продукта

please use latin characters

Производитель: Ebmpapst

EBM Compact Faans.

Table.Technical data

Type Supply cable Connector Voltage
znam.
[V DC]		 voltage range
[V DC]		 Power
[W]		 Speed
[turn/min.]		 Efficiency
[m3/h]		 Noise level
[dB]		 Operation temperature
[°C]		 Weight
[kg]
W1G 115-AT2101 -01 - 24 16-28 14 4300 290 54 -15 do 60 0,5
W1G 115-AT2301 -01 - 48 36-57 14 4300 290 54 -15 do 60 0,5
W2G 115-AT28 -01 -02 24 16-28 8 3250 220 47 -15 do 65 0,5
W2G 115-AT31 -01 -02 48 36-57 8 3250 220 47 -15 do 65 0,5
W2G 115-AT2902 -01 -02 24 16-28 7 3250 220 47 -15 do 65 0,6
W2G 115-AT3102 -01 -02 48 36-57 6,5 3250 220 47 -15 do 65 0,6

Table. Electrical connection


Type Electrical connection
+
red		 -
blue		 input for rotation control - white input for PWM control
yellow
W1G 115-AT..-01 x x x x
W2G 115-AV..-01 x x x
W2G 115-AV..-02
Air flow direction V <--




Table. Technical data

Type Connector Voltage
[V ]		 Frequency
[Hz]		 Power
[W]		 Speed
[turn/min.]		 Efficiency
[m3/h]		 Noise level
[dB]		 Operation temperature
[°C]		 Weight
[kg]
W2E 142-BB 01-01 x 230 50/60 29 2800 330 52 55 0,9
28 3300 390 57 70
W2E 142-BB 05-01 x 115 50/60 25 2800 330 52 55 0,9
24 3300 390 57 70
W2E 143-AA 09-01 x 230 50/60 24 2800 375 55 70 1
26 3300 440 60 70
W2E 143-AA 15-01 x 115 50/60 24 2800 375 55 70 1
26 3300 440 60 70
W2E 143-AB 09-01 x 230 50/60 26 2800 420 54 60 1
29 3300 500 58 75
W2E 143-AB 15-01 x 115 50/60 26 2850 420 54 60 1
29 3300 500 58 75


Scheme W2E 142-BB

Scheme W2E 143




Table. Technical data

Type Voltage.
[V DC]		 voltage range
[V DC]		 Frequency
[Hz]		 Power
[W]		 Speed
[turn/min.]		 Efficiency
[m3/h]		 Noise level
[dB]		 Operation temperature
[°C]		 Weight
[kg]
Supplied with DC voltage
W2G 130-AA31-01 12 6-16 - 14 2950 345 51 -15 do 60 1
W2G 130-AA33-01 24 16-28 - 14 2950 345 51 -15 do 60 1
W2G 130-AA09-01 48 36-57 - 14 2950 345 51 -15 do 60 1
Supplied with AC voltage
W2S 130-AA 03-01 230 - 50/ 45 2800 325 49 50 1,2
- 60 39 3250 380 53 70
W2S 130-AA 25-01 115 - 50/ 41 2800 325 49 60 1,1
- 60 38 3250 380 53 80
W2S 130-BM 03-01 230 - 50/ 47 2700 380 60 50 1,1
- 60 46 3050 425 62 70
W2S 130-BM 15-01 115 - 50/ 47 2700 380 60 50 1,1
- 60 46 3050 425 62 70


SchemeW2S130-AA... Air flow direction V -->


Scheme W2S130-BM... Air flow direction A <--




Table. Technical data

Type Voltage
[V DC]		 Frequency
[Hz]		 Efficiency
[m3/h]		 Speed
[turn/min.]		 Power
[W]		 Current
[A]		 Capacitor
[µF/V]		 Noise level
[dB]		 Operation temperature
[°C]		 Weight
[kg]
W2E 200-HH 38-01 230 50/ 925 2550 64 0,29 1,5/400 59 60 2
60 1030 2800 80 0,35 61 65
W2E 200-HH 86-01 115 50/ 925 2550 64 0,58 5/220 59 60 2
60 1030 2800 80 0,7 61 65
W2E 250-HL 06-01 230 50/ 1860 2550 135 0,59 4/400 68 60 1,8
60 1975 2700 185 0,82 70 40
W4S 200-HH 04-01 230 50/ 455 1370 30 0,22 - 43 70 2
60 520 1570 28 0,19 46 75


Table. Technical data

Type Voltage
[V DC]		 voltage range
[V DC]		 Efficiency
[m3/h]		 Speed
[turn/min.]		 Power
[W]		 Current
[A]		 Noise level
[dB]		 Operation temperature
[°C]		 Weight
[kg]
W1G 200-HH 77-52 24 16-28 1080 2950 55 2,6 60 60 2
W1G 200-HH 01-52 48 36-57 1090 2950 45 1,1 60 60 2
W1G 250-HH 37-52 24 16-28 1920 2750 105 5,0 70 60 2,1
W1G 250-HH 67-52 48 36-57 1920 2750 105 2,6 70 60 2,1


SchemeW2E 200/250 W4S 200 Air flow direction V -->

Scheme W1G 200/250 Air flow direction V -->

Table. Technical data

Type a
[mm]		 b
[mm]		 c
[mm]		 d
[mm]
200 225 240 260 4,5
250 280 295 320 5,4

//
