Производитель: TEXA industries

Кулеры серии 4 - TCOB2-C8

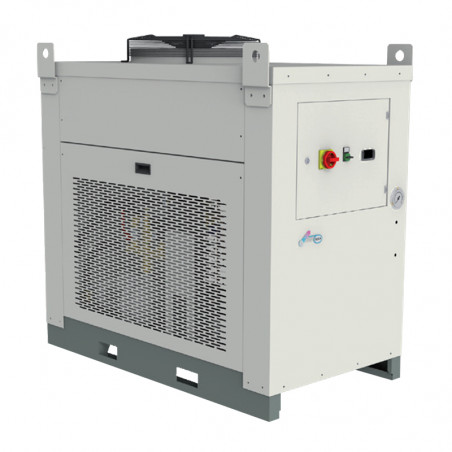

Industrial coolers 4 TCO series 23000 - 37600 W


Cooling power range 23000 - 37600 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable.
Compressor Hermetically closed compressor with thermal protection.
Cooling circuit Stub pipe for cooling liquid refill, filter , high pressure switch, cooling liquid R134a.
Evaporator Plate heat exchanger with icing protection.
Condenser High efficient,spiral exchanger with ribs, protected with steel net.
Axial fan Protected thermally and with metal net.
Hydraulic circuit
 Consist of electric pump, plastic water container, valve, manometr 0-10 bar. Evaporator is protected with flow sensor.
Temperature control is done by the microprocessor controller TX200, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.

Dimensions

Technical data


Type TCO B2 TCO B7 TCO C1 TCO C8
Nominal cooling power [W] 23000 28300 32800 37600
Ambient temperature range [oC] +10 - +45
Temperature range of oil [oC] +20 - +25
Cooling factor R410A
Supply voltage [V] 400 3f / 50
Power supply[W] 10 11,5 13 14,7
Pumps
Water flow [I/min] 120 120 120 120
Water pressure [bar] 20 20 20 20
Container capacity [l] 150
Terminal [BPS] 1,5"
Weight [kg] 440 460 500 520
