Микропереключатели серии V15

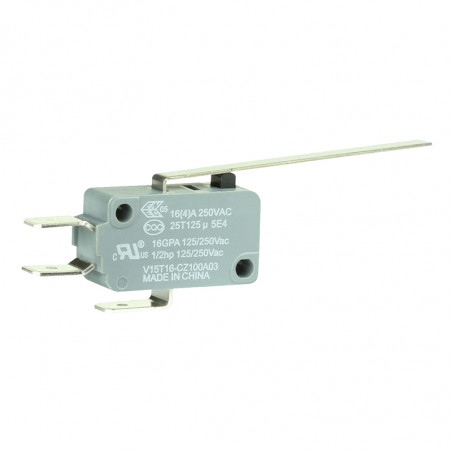

Honeywell’s MICRO SWITCH™ V-Basic Switch Standard, V15 Series, is an electromechanical switch designed for enhanced reliability at a great value. This switch is often ideal for “low-cost-of-failure” – where the cost to replace the switch or to service any failure related to the switch is minimal. The V15 is designed for applications requiring ≥ 100 g of operating force and electrical ratings ranging from 16A to 26A. The V15 Series switch offers a wide range of standard offerings, including a choice of actuators, electrical ratings, operating forces, and circuitry, and holds global approvals (ENEC, CQC, UL, cUL).

FEATURES:
• Broad range of electrical loads
• Straight, roller, simulated roller, and special actuators
• Special terminations available upon request
• Precision operation and application versatility
• Wide temperature range
• Global approvals (ENEC, CQC, UL, cUL))



Specifications

Insulation resistance	> 100 mΩ (500 V=)
Dielectric strength	1000 V~ (50 Hz/60 Hz, 1 min.)
Contact resistance	max. 100 mΩ
Operating frequency - electrical	10 to 30 operations per minute
Operating frequency – mechanical	300 operations per minute max.
Operating speed	0,1 mm – 1 m / s.
Service life mechanical	5 million cycles (operating force < 200 g); 1 million cycles (operating force > 200 g)
Service life electrical	6000 or 50000 operations minimum
Storage temperature	-25°C - 100°C
Storage humidity	85 % RH max.
Micro disconnection (μ)	< 3 mm contact gap
Agency approvals	ENEC, CQC, UL, cUL
