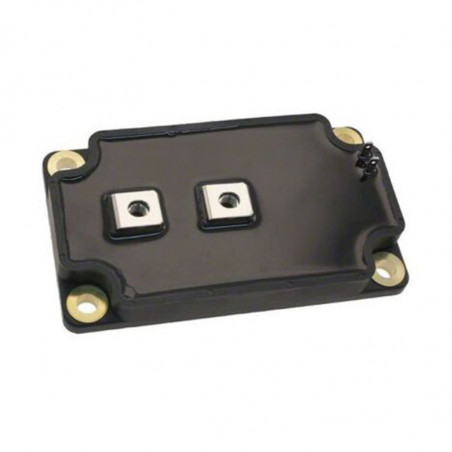

Фотографии предназначены только для информационных целей. Посмотреть спецификацию продукта

please use latin characters

Производитель: Microsemi

Модули MOSFET - MicroSemi

Features:
- Power MOS 7® MOSFETs
- Low RDSon
- Low input capacitance
- Low gate charge
- Avalanche energy rated
- High level of integration
- AlN substrate for improved thermal performance

Casing:
casing microsemi

Table. Technical data

  Breakdown Voltage, Drain-Source (Gate Short-Circui (max)) Drain Current (dc) (max) On-State Resistance (Static Drain to Source) (max)

APTM08TAM04PG

 75 90 4.2

APTM100A13DG

 1000 49 130

APTM100A13SCG

 - - 130

APTM100A13SG

 1000 49 130

APTM100A18FTG

 1000 33 180

APTM100A23STG

 1000 26 230

APTM100A40FT1G

 1000 16 400

APTM100AM90FG

 1000 59 90

APTM100DA18CT1G

 - - 180

APTM100DA18TG

 1000 33 180

APTM100DA33T1G

 1000 17 330

APTM100DAM90G

 1000 59 90

APTM100DDA35T3G

 1000 17 350

APTM100DSK35T3G

 1000 17 350

APTM100DUM90G

 1000 59 90

APTM100H18FG

 1000 33 180

APTM100H35FT3G

 1000 17 350

APTM100H35FTG

 1000 17 350

APTM100H45FT3G

 1000 14 450

APTM100H45SCTG

 - - 450

APTM100H45STG

 1000 13 450

APTM100H46FT3G

 1000 14 460

APTM100SK18TG

 1000 33 180

APTM100SK33T1G

 1000 17 330

APTM100SKM90G

 1000 59 90

APTM100TA35FPG

 1000 17 350

APTM100UM45DAG

 1000 160 45.3

APTM100UM45FAG

 1000 160 45

APTM100UM60FAG

 1000 97 60

APTM100UM65DAG

 1000 110 65.2

APTM100UM65SAG

 1000 110 65

APTM100UM65SCAVG

 - - 65

APTM100VDA35T3G

 1000 17 350

APTM10AM02FG

 100 370 2.25

APTM10AM05FTG

 100 207 4.5

APTM10DAM02G

 100 370 2.25

APTM10DAM05TG

 100 207 4.5

APTM10DDAM09T3G

 100 100 9

APTM10DDAM19T3G

 100 50 19

APTM10DHM05G

 100 207 4.5

APTM10DHM09T3G

 100 100 9

APTM10DSKM09T3G

 100 100 9

APTM10DSKM19T3G

 100 50 19

APTM10DUM02G

 100 370 2.25

APTM10HM05FG

 100 207 4.5

APTM10HM09FT3G

 100 100 9

APTM10HM19FT3G

 100 50 19

APTM10SKM02G

 100 370 2.25

APTM10SKM05TG

 100 207 4.5

APTM10TAM09FPG

 100 100 9

APTM10TAM19FPG

 100 50 19

APTM10TDUM09PG

 100 100 9

APTM10UM01FAG

 100 640 1.5

APTM10UM02FAG

 100 430 2.25

APTM120A15FG

 1200 45 150

APTM120A20DG

 1200 37 200

APTM120A20SG

 1200 37 200

APTM120A29FTG

 1200 25 290

APTM120A65FT1G

 1200 12 650

APTM120DA30CT1G

 - - 300

APTM120DA30T1G

 1200 23 300

APTM120DA56T1G

 1200 13 560

APTM120DDA57T3G

 1200 13 570

APTM120DSK57T3G

 1200 13 570

APTM120DU15G

 1200 45 150

APTM120H140FT1G

 1200 6 1400

APTM120H29FG

 1200 25 290

APTM120SK56T1G

 1200 13 560

APTM120TDU57PG

 1200 13 570

APTM120U10SAG

 1200 116 100

APTM120U10SCAVG

 - - 100

APTM120UM70DAG

 1200 126 70

APTM120UM70FAG

 1200 126 70

APTM120VDA57T3G

 1200 13 570

APTM20AM04FG

 200 300 4

APTM20AM05FG

 200 250 5

APTM20AM06SG

 200 225 6

APTM20AM08FTG

 200 147 8

APTM20AM10FTG

 200 125 10

APTM20AM10STG

 200 125 10

APTM20DAM04G

 200 300 4

APTM20DAM05G

 200 250 5

APTM20DAM08TG

 200 147 8

APTM20DHM08G

 200 147 8

APTM20DHM16T3G

 200 77 16

APTM20DUM04G

 200 300 4

APTM20DUM05G

 200 250 5

APTM20DUM08TG

 200 147 8

APTM20HM08FG

 200 147 8

APTM20HM10FG

 200 125 10

APTM20HM16FTG

 200 74 16

APTM20HM20FTG

 200 62 20

APTM20HM20STG

 200 62 20

APTM20SKM04G

 200 300 4

APTM20SKM05G

 200 250 5

APTM20SKM08TG

 200 147 8

APTM20TAM16FPG

 200 74 16

APTM20UM03FAG

 200 434 3

APTM20UM04SAG

 200 310 4

APTM50AM17FG

 500 140 17

APTM50AM19FG

 500 125 19

APTM50AM24SCG

 - - 24

APTM50AM24SG

 500 110 24

APTM50AM35FTG

 500 70 35

APTM50AM38FTG

 500 64 38

APTM50AM38SCTG

 -   38

APTM50AM38STG

 500 64 38

APTM50DAM17G

 500 140 17

APTM50DAM19G

 500 125 19

APTM50DDA10T3G

 500 24 100

APTM50DDAM65T3G

 500 37 65

APTM50DHM35G

 500 70 35

APTM50DHM38G

 500 64 38

APTM50DHM65T3G

 500 32 65

APTM50DSK10T3G

 500 24 100

APTM50DSKM65T3G

 500 37 65

APTM50DUM17G

 500 140 17

APTM50DUM35TG

 500 70 35

APTM50H10FT3G

 500 24 100

APTM50H14FT3G

 500 18 140

APTM50H15FT1G

 500 25 130

APTM50HM35FG

 500 70 35

APTM50HM38FG

 500 64 38

APTM50HM65FT3G

 500 37 65

APTM50HM65FTG

 500 37 65

APTM50HM75FT3G

 500 32 75

APTM50HM75FTG

 500 32 75

APTM50HM75SCTG

 - - 75

APTM50HM75STG

 500 32 75

APTM50SKM17G

 500 140 17

APTM50SKM19G

 500 125 19

APTM50TAM65FPG

 500 37 65

APTM50UM09FAG

 500 371 9

APTM50UM13SAG

 500 250 13

APTM60A11FT1G

 600 40 90

APTM60H23FT1G

 600 20 190
