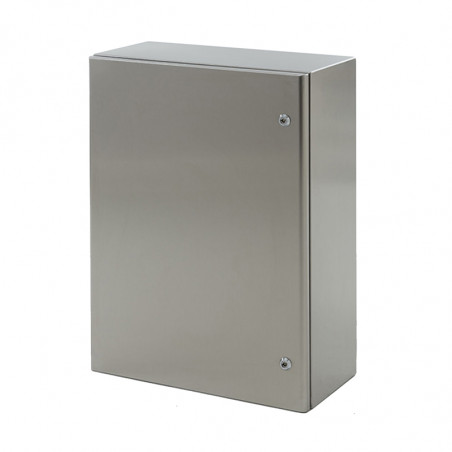

Корпус из нержавеющей стали Свадебная серия FQL FQL

CONSTRUCTION
AISI 304 Scotch-Brite 240 stainless steel, satin finish Built from one stainless steel sheet, 1,5mm gauge.
M6 fastening holes for direct mounting or wall mounting.
M8 fasteners for back plate mounting.
Four M6 fasteners for earthing.
One-piece foam-in-place polyurethane gasket, mechanical placement, to provide for IP66 protection for long term use 4mm clear polycarbonate window mounted flush with door surface, with EPDM gasketing for FQL models.
Stainless steel hidden door hinges, 120° opening.
Senzimir back plate, 2.0mm gauge.
Two overlapping doors, right on left, for sizes over 1000mm in width.

OPTIONALS
Product can be customized to client's specifics needs: holes, cutouts and different sizes as per your drawings with AISI 316 and specialty stainless steels stainless steel back panel, double-layer glass window, 3+3mm, glued to door.

Accessories, Panel Protection Window, Data Pocket, Cooling Systems, Locking Systems, Cable flange hitch, Rain shield, Wallmounting kit, Pedestal, Gas Pistons

Product code	Dimensions
	B mm	H mm	P mm
FQ 20 30 15	200	300	150
FQ 30 30 21	300	300	210
FQ 30 40 21	300	400	210
FQ 30 45 21	300	450	210
FQ 35 40 21	350	400	210
FQ 35 45 21	350	450	210
FQ 40 50 25	400	500	250
FQ 40 60 25	400	600	250
FQ 40 60 30	400	600	300
FQ 45 45 21	450	450	210
FQ 45 60 25	450	600	250
FQ 45 60 30	450	600	300
FQ 50 50 25	500	500	250
FQ 50 65 25	500	650	250
FQ 50 70 25	500	700	250
FQ 60 45 25	600	450	250
FQ 60 60 25	600	600	250
FQ 60 60 30	600	600	300
FQ 60 75 25	600	750	250
FQ 60 75 30	600	750	300

Specifity model type when ordering:
FQ solid door enclosures - FQL poycarbonate windoe-door enclosure

Product code	Dimensions
	B mm	H mm	P mm
FQ 60 80 25	600	800	250
FQ 60 80 30	600	800	300
FQ 60 80 40	600	800	400
FQ 60 90 25	600	900	250
FQ 60 90 30	600	900	300
FQ 60 120 30	600	1200	300
FQ 60 140 30	600	1400	300
FQ 60 160 40	600	1600	400
FQ 75 60 25	750	600	250
FQ 75 100 30	750	1000	300
FQ 75 120 30	750	1200	300
FQ 80 100 30	800	1000	300
FQ 80 120 30	800	1200	300
FQ 80 120 40	800	1200	400
FQ 80 140 30	800	1400	300
FQ 80 160 40	800	1600	400
*  FQ 100 60 30	1000	600	300
*  FQ 100 80 30	1000	800	300
*  FQ 120 60 30	1200	600	300
*  FQ 120 80 30	1200	800	300

* Two overlapping doors without centerpost; right block left
