B3FT - двухпроводной температурный преобразователь с термопаркой ввода

The

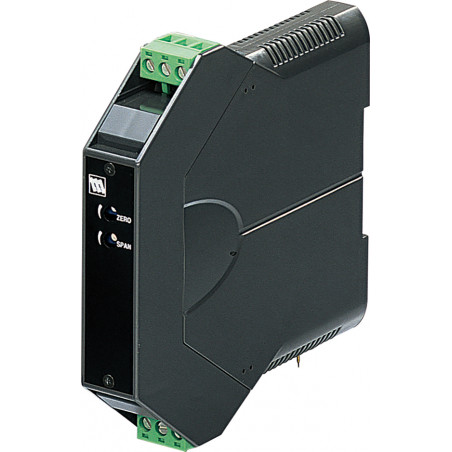

B3FT is a two-wire temperature converter with thermocouple input.

Features

• DC power
• Provides a standard analog signal
• Two-wire converter
• Configurable input range
• DIN rail mounting
• 2000V AC insulation

Types of inputs: Thermocouple - K, E, J, T, R, N
Kinds of outputs: current 4… 20mA
Possibility of making the range of inputs / outputs on special order.

< table border = "1" style = "width: 100%;"> Wire connection M3 screw terminals Separation Input / Output / Power Dielectric strength DC: 2000V AC Ranges selection Configurable Input Range Double Output None Power DC Operating Temperature - 40 to + 85 ° C Mounting DIN rail Dimensions 18x106x110.5mm
