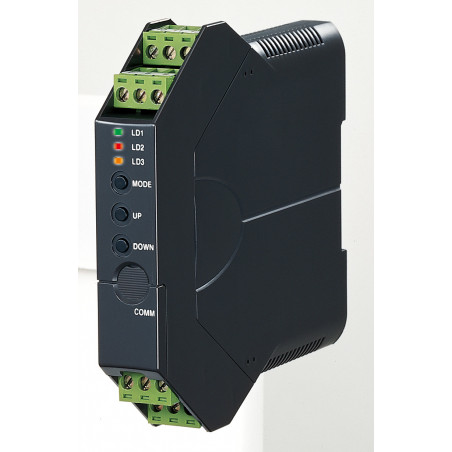

![M3LT - преобразователь температуры с входом термопары - настраиваемый M3LT - преобразователь температуры с входом термопары - настраиваемый](https://www.dacpol.eu/20875-large_default/m3lt-preobrazovatel-temperatury-s-vkhodom-termopary-nastraivaemyj.jpg)
![M3LT - преобразователь температуры с входом термопары - настраиваемый M3LT - преобразователь температуры с входом термопары - настраиваемый](https://www.dacpol.eu/20875-large_default/m3lt-preobrazovatel-temperatury-s-vkhodom-termopary-nastraivaemyj.jpg)
Фотографии предназначены только для информационных целей. Посмотреть спецификацию продукта
please use latin characters
Input types: Thermocouple - K, E, J, T, B, R, S, N, U, L, P
Kinds of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on special order.
Wire connection | M3 screw terminals | Separation | Input / Output / Power |
---|---|
Dielectric strength ic | DC: 2000V AC AC: 1500V AC |
Range selection | Programmable via PC and front buttons |
Double output | None |
Power < / th> | DC |
Working temperature | - 25 to + 65 ° C |
Montage | DIN rail |
Dimensions | 18x106x110.5mm |
Вы заинтересованы в этом продукте? Вам нужна дополнительная информация или индивидуальные расценки?
Вы должны быть зарегистрированы
Input types: Thermocouple - K, E, J, T, B, R, S, N, U, L, P
Kinds of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on special order.
Wire connection | M3 screw terminals | Separation | Input / Output / Power |
---|---|
Dielectric strength ic | DC: 2000V AC AC: 1500V AC |
Range selection | Programmable via PC and front buttons |
Double output | None |
Power < / th> | DC |
Working temperature | - 25 to + 65 ° C |
Montage | DIN rail |
Dimensions | 18x106x110.5mm |
