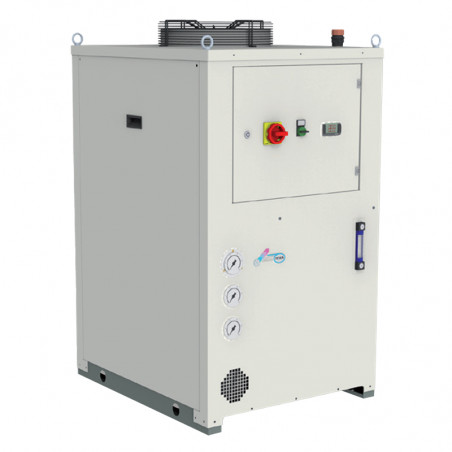

Маслоохладители серии 2 TCO56-A0
  • Маслоохладители серии 2 TCO56-A0

Фотографии предназначены только для информационных целей. Посмотреть спецификацию продукта

please use latin characters

Производитель: TEXA industries

Маслоохладители серии 2 TCO56-A0

Coolers series 2 for oil cooling TCO56-A0


Cooling power range 6000 - 10900 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable.
Compressor Hermetically closed compressor with thermal protection.
Cooling circuit Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R134a.
Evaporator Plate heat exchanger with icing protection.
Condenser High efficient, spiral exchanger with ribs, protected with steel net.
Axial fan Protected thermally and with metal net.
Hydraulic circuit Consists of high pressure oil pump 20 bar, pressure control valve 5bar. Manometer 0-25 bar. Oil container is mounted on the client request.
Temperature control Done by the microprocessor controller TX200, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.

Dimensions


Chłodnice, Chillery do chłodzenia oleju serii 2 TCO wymiar


Dane techniczne

Type TCO 56 TCO 70 TCO 91 TCO A0
Nominal cooling power [W] 6000 8100 9200 10900
Ambient temperature range [°C] +15 ÷ +45
Oil temperature range [°C] +20 ÷ +35
Cooling liquid R134a
Power supply [V/Hz] 400 3f/50
Power [W] 4430 4530 4830 5230
Pump
Oil flow [l/min] 20,0 20,0 20,0 20,0
Oil pressure [bar] 20,0 20,0 20,0 20,0
Container capacity [l] 60 (oil container mounted on clients request)
Water terminal [BPS] 3/4"
Weight [kg] 142 144 147 150
