Пассивный измерительный зонд PML1110

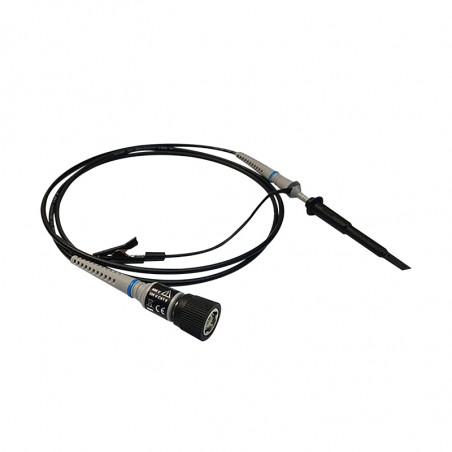

PML 1110 Passive Probe

The PML 1110 is a passive 10:1 probe manufactured by PMK, optimized for the use with Bode 100. Use the PML 111O to:
• Perform highly accurate loop gain measurements
• Reduce capacitive loading of your circuit
• Protect the input channels of your Bode 100

Key Features and some technical data
• Compact 2.5 mm probe design
• 1 MΩ || 12.5 pF input impedance for lowest noise
• Exchangeable gold plated spring-tip
• Passband: 50 MHz (±1 dB)
• Attenuation ratio: 10:1

Delivery inlcudes:
• Probe PML 111O with spring tip and protective cap
• Solid probe tip (CuBe 0.5 mm)
• Ground lead
• Ground spring-contact
• Sprung hook
• BNC adapter
• Isolation cap
• PCB adapter kit
• Color-coding rings (3x4 colors)
• Printed user-manual
