Производитель: IBOCO

Ибоко

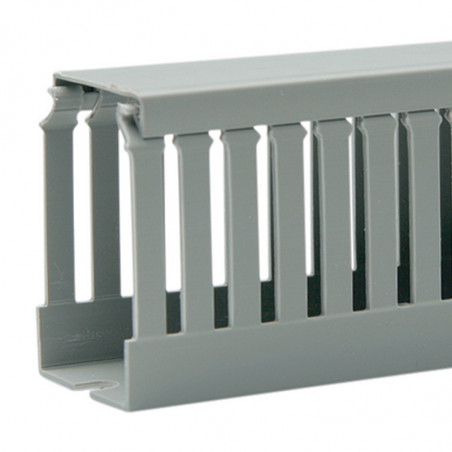

Iboco T1


technical parameters:
Material: Self extinguished  PVC
Standard length: 2 meters
Colours: grey, white

Name Dimensions [mm] Packing
  B
[mm]
H
[mm]
 E
[mm]		 F
[mm]		 G
[mm]		 Section
[mm 2 ]		 meters

T1 15x18 S

15

18

5

7,5

4

200

72

T1 15x30 S

15

30

5

7,5

6

340

64

T1 25x30 S/B/C

25

30

5

7,5

8

610

72

T1 15x40 S

15

40

5

7,5

10

460

48

T1 25x40 S

25

40

8

12

12

820

72

T1 40x40 S/B

40

40

8

12

12

1360

40

T1 60x40 S/C

60

40

8

12

12

1970

24

T1 80x40 S

80

40

8

12

12

2680

24

T1 100x40 S

100

40

8

12

12

3380

16

T1 15x60 S

15

60

5

7,5

10

680

32

T1 25x60 S/B/C

25

60

8

12

14

1190

48

T1 40x60 S/B/C

40

60

8

12

14

2040

36

T1 60x60 S/B/C

60

60

8

12

14

3080

24

T1 80x60 S/B

80

60

8

12

14

4150

24

T1 100x60 S/B

100

60

8

12

14

5250

16

T1 120x60 S

60

60

8

12

14

6300

16

T1 25x80 S/B

25

80

8

12

16

1550

48

T1 40x80 S/B

40

80

8

12

16

2700

32

T1 60x80 S/B/C

60

80

8

12

16

4140

24

T1 80x80 S/B/C

80

80

8

12

16

5660

24

T1 100x80 S/B

100

80

8

12

16

7150

16

T1 120x80 S

120

80

8

12

16

8630

16

T1 25x100 S/B

25

100

8

12

18

3310

16

T1 40x100 S/B

40

100

8

12

18

3310

26

T1 60x100 S/B

60

100

8

12

18

5140

8

T1 80x100 S/B

80

100

8

12

18

7020

8

T1 100x100 S/B/C

100

100

8

12

18

8920

8

T1 150x100 S/B

150

100

8

12

18

13570

8

T1 75x125 S/B

75

125

8

12

20

8398

12

T1 100x125 S/B

100

125

8

12

20

11415

8



Iboco T1-F



Name Dimensions [mm] Packing
  B
[mm]
H
[mm]
 E
[mm]		 F
[mm]		 G
[mm]		 Section
[mm 2 ]		 meters

T1-F 25x80 S

 25 80 8 12 16 1550 48

T1-F 40x80 S

 40 80 8 12 16 2700 32

T1-F 60x80 S

 60 80 8 12 16 4140 24

T1-F 80x80 S

 80 80 8 12 16 5660 24

T1-F 100x80 S

 100 80 8 12 16 7150 16

T1-F 120x80 S

 120 80 8 12 16 8630 16

T1-F 40x100 S

 40 100 8 12 16 3310 16

T1-F 60x100 S

 60 100 8 12 16 5140 8

T1-F 80x100 S

 80 100 8 12 16 7020 8

T1-F 100x100 S

 100 100 8 12 16 8920 8

T1-F 120x100 S

 120 100 8 12 16 13570 8

S –colour grey
B –white colour
C –black colour



Iboco T1-E

technical parameters:
Material: Self extinguished stiff  PVC
Standard length: 2 meters
Colours: grey

Name Dimensions [mm]Packing
  B
[mm]
H
[mm]
 E
[mm]		 F
[mm]		 G
[mm]		 Section
[mm 2 ]		 meters

T1-E 25x40 S

 25 40 4 6 12 820 72

T1-E 40x40 S

 40 40 4 6 12 1360 40

T1-E 60x40 S

 60 40 4 6 12 1970 24
T1-E 80x40 S 80 40 4 6 12 2680 24
T1-E 100x40 S 100 40 4 6 12 3380 16
T1-E 25x60 S 25 60 4 6 14 1190 48
T1-E 40x60 S 40 60 4 6 14 2040 36
T1-E 60x60 S 60 60 4 6 14 3080 24
T1-E 80x60 S 80 60 4 6 14 4150 24
T1-E 100x60 S 100 60 4 6 14 5250 16
T1-E 120x60 S 120 60 4 6 14 6300 16
T1-E 25x80 S 25 80 4 6 16 1550 48
T1-E 40x80 S 40 80 4 6 16 2700 32
T1-E 60x80 S 60 80 4 6 16 4140 24
T1-E 80x80 S 80 80 4 6 16 5660 24
T1-E 100x80 S 100 80 4 6 16 7150 16
T1-E 120x80 S 120 80 4 6 16 8630 16
T1-E 100x100 S 100 100 4 6 18 8920 8
Iboco T1-EF

technical parameters:
Material: Self extinguished stiff  PVC
Standard length: 2 meters
Colours: grey

Name Dimensions [mm] Packing
  B
[mm]
H
[mm]
 E
[mm]		 F
[mm]		 G
[mm]		 Section
[mm 2 ]		 meters
T1-EF 25x80 S 25 80 4 6 16 1550 48
T1-EF 40x80 S 40 80 4 6 16 2700 32
T1-EF 60x80 S 60 80 4 6 16 4140 24
T1-EF 80x80 S 80 80 4 6 16 5660 24
T1-EF 100x80 S 100 80 4 6 16 7150 16
T1-EF 120x80 S 120 80 4 6 16 8630 16
T1-EF 100x100 S 100 100 4 6 16 8920 8
Iboco DN-A

technical parameters:
Material: Self extinguished polypropylene
Standard length: 0.5 meters
Colours: grey



Name   Dimensions [mm]
Section [mm2]

Quantity in package
DN-A 10 S 13 x 15 100 150
DN-A 20 S 20 x 24 320 64
DN-A 30 S 30 x 33 620 36
DN-A 40 S 40 x 44 1220 20
