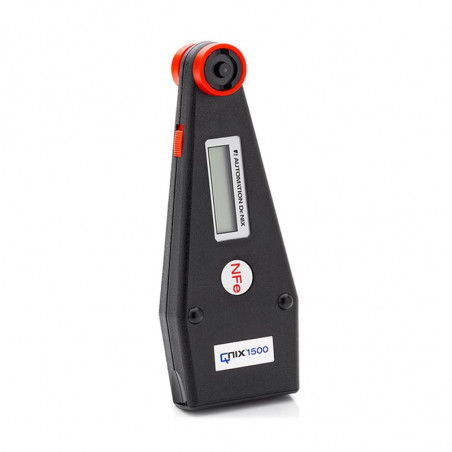

QNix 1500/1200 Толщиномер покрытия

The QNix® 1500 is reliable, easy to use and durable. Therefore it is the most popular coating thickness gauge for applications in the motor vehicle sector and indispensable for motor vehicle experts.

Do you produce damage reports and value appraisals and require a coating thickness gauge for the vehicle assessment? Do you value easy operation and reliable results? If so, the QNix® 1500 is the right gauge for you.

Due to the 3-point contact, you can position the QNix® 1500 easily and safely and always receive reliable measurement results. By means of two independent measurement probes, you instantly recognise on which basic substrate you are taking a measure. You can take coating thickness measurements on steel, iron (Fe) and non-ferrous metals (NFe) like aluminium, zinc, copper and brass. All QNix® coating thickness gauges function according to our easy-to-use principle: position, measure and read.

All the advantages of QNix® at a glance

• Easy operation: Position - measure - read
• High accuracy and precision
• Easy zero-point calibration
• Durable ruby measuring head tip

Operation

• Automatically turns on and off and can be operated with one hand – Focusing on the essential
• Ergonomic design: designed for continual use
• Easy operation: Position - measure - read
• All common languages displayable: can be used around the world

Advantages of application

• 3-point contact: preventstilting
• Measured values, battery status, measuring unit, mode: easy to check
• High-resolution LCD: easy to read even in strong sunlight
• Large numbers: optimal readability
• Polished ruby measuring head tip: protection of the measurement probe and the surfaces to be measured

An overview of QNix® 1200 and QNix® 1500

QNix® 1200 – Gauge with 3-point contact for ferrous substrates is ergonomic, quick and durable.

QNix® 1500 – Gauge with 3-point contact and 2 independent measurement probes for Fe and NFe substrates. The device can be turned and thereby the measurement method can be easily changed.

Scope of delivery for the QNix® 1500 / QNix® 1200

• QNix® 1500 or QNix® 1200
• Fe or Fe/NFe reference plate
• 9V monobloc battery
• Test certificate
• Operating instructions
• Plastic case (ensures comfortable transportation and safe storage)

Technical data QNix® 1500 / 1200

Fe* – Measurement of non-ferrous or non-ferromagnetic coatings on ferromagnetic substrate, such as measurements on iron or steel substrate.
NFe* – Measurement of non-ferrous or non-ferromagnetic and non-electrically conductive coatings on non-ferrous or non-ferromagnetic and electrically conductive substrate, such as measurements on aluminium, zinc, copper, brass and certain stainless steel substrates.
