BELLMINI gas detector
  • BELLMINI gas detector

Фотографии предназначены только для информационных целей. Посмотреть спецификацию продукта

please use latin characters

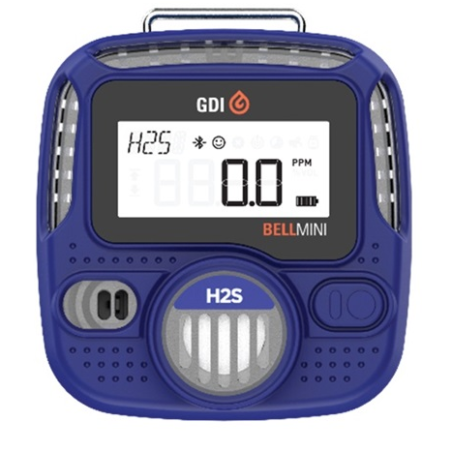

BELLMINI gas detector

BELLMINI is a portable gas detector that protects users' safety by triggering high-brightness LEDs, buzzers, and vibrating alarms in case of oxygen deficiency or toxic gases exposure. It offers the option to choose from 16 sensors, including O2, CO, H2S, H2, NH3, Cl2, SO2, and PH3 sensors. The wider and clearer LCD display (1.6") accurately shows the measured value in real time. BELLMINI with low power consumption provides over 2 years of operation without the need to replace the battery. It economically ensures durability and reliability. For the convenience of the user or administrator, the BELLCONNECT application allows configuration changes, calibration, and easy management of stored data. Built-in NFC and BLE communication by default make wireless connections between sensors and portable devices faster and easier. Measured data is sent to the cloud in real time, and the administrator can monitor the value and check the risk in advance by accessing the network.

Main Features:

  • Wider display, easier operation, and wireless connection (NFC and BLE)
  • Short sensor response time
  • Automatic self-test
  • High-performance visual (LED), audible (100dB for 10cm), and vibrating alarms
  • Data centralization and convenient features thanks to the BELLCONNECT app
  • Over two years of use without battery replacement thanks to energy-efficient design
  • High level of water and dust resistance IP68
  • Intrinsic safety and reliable international certifications
  • Data sharing and monitoring via cloud service

Applications:

Pocket gas detectors can be applied in many industries where there is a risk of harmful gas leaks, including:

  • Oil and gas industry
  • Chemical industry
  • Pharmaceutical industry
  • Mining
  • Food industry (refrigerant gases)
  • Construction industry (gas installation leaks on construction sites)
  • Energy industry (e.g., gas power plants)

Polish companies that might be interested in applying such detectors:

  • PGNiG
  • Orlen
  • KGHM
  • Synthos
  • Grupa Azoty
  • PGE Polska Grupa Energetyczna
  • Polpharma

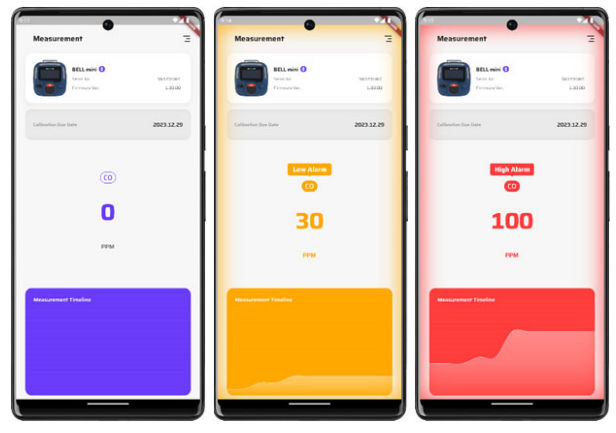

Cloud data:




Technical Data

Parameter Value
Size 66x69x24mm (without clip)
66x69x41mm (with clip)
Weight 105g (with clip)
Display FSTN LCD 1.6 inches
Protection rating IP68
Alarms Visual (LED), vibrating, audible (buzzer; 100dB at 10cm): low, high TWA, STEL
User options Resetting peak, TWA, and STEL values, adjustable alarm set points, enabling/disabling alarm latch
Adjusting calibration and bump test interval
Zero and span calibration, data download, FW update
Self-test Sensor and circuitry failure, battery
Battery Lithium, battery size 2/3 AA 3.6V: 24 months (TBC)
Wireless connection Bluetooth Low Energy (BLE) - connection to BELLCONNECT app or cloud
Near Field Communication (NFC) - easy close-range connection
Data logging Up to 200 alarm events, 5000 data logs
Warranty 2 years (see sensor data)

Sensor Data:

Gas Measurement Range Resolution Temperature Range
O2 0-30%Vol 0.1%Vol -30℃ to 50℃
O2 lead-free 0-30%Vol 0.1%Vol -40℃ to 60℃
CO 0-1000 ppm 1 ppm -30℃ to 50℃
CO-H 0-500 ppm 1 ppm -30℃ to 50℃
CO-E 0-2000 ppm 1 ppm -30℃ to 50℃
H2S 0-100 ppm 0.1 ppm -30℃ to 50℃
H2 0-1000 ppm 1 ppm -30℃ to 50℃
SO2 0-20 ppm 0.1 ppm -30℃ to 50℃
Cl2 0-50 ppm 0.1 ppm -20℃ to 50℃
HCl 0-15 ppm 0.1 ppm -30℃ to 50℃
HCN 0-100 ppm 0.1 ppm -30℃ to 50℃
PH3 0-20 ppm 0.1 ppm -30℃ to 50℃
ETO 0-20 ppm 0.1 ppm -20℃ to 50℃
O3 0-5 ppm 0.01 ppm -20℃ to 50℃
NO 0-250 ppm 1 ppm -30℃ to 50℃
NO2 0-30 ppm 0.1 ppm -30℃ to 50℃
NH3 0-100 ppm 1 ppm -40℃ to 50℃
NH3-E 0-1000 ppm 1 ppm -40℃ to 50℃
