Производитель: M-SYSTEM

W2MS - преобразователь сигнала с резистивным входом с двойным выходом

  • W2MS

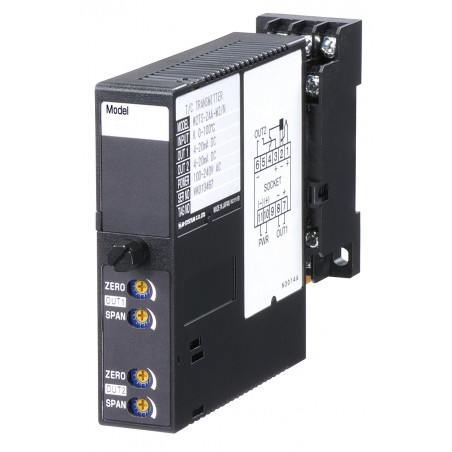

W2MS is a converter with a resistance input with two outputs.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without the need to interfere with Wiring
  • DC / AC Power
  • Dual Output
  • DIN Rail Mounting
  • 2000V AC Insulation
  • Possibility options with faster response time

    • Types of inputs: resistive 100Ω - 10kΩ
    Types of outputs: current or voltage
    Possibility of making the range of inputs / outputs on special order.


    < td style = "padding-left: 20px"> M3 screw terminals < / table>
    Меньше
    Читать больше

    Отправить запрос

    Вы заинтересованы в этом продукте? Вам нужна дополнительная информация или индивидуальные расценки?

    Свяжитесь с нами
    СПРОСИТЕ ПРОДУКТ close
    Спасибо за отправку вашего сообщения. Мы ответим как можно скорее.
    СПРОСИТЕ ПРОДУКТ close
    Просматривать
    отправить запрос

    Добавить в список желаний

    Вы должны быть зарегистрированы

    W2MS is a converter with a resistance input with two outputs.


    Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without the need to interfere with Wiring
  • DC / AC Power
  • Dual Output
  • DIN Rail Mounting
  • 2000V AC Insulation
  • Possibility options with faster response time

    • Types of inputs: resistive 100Ω - 10kΩ
    Types of outputs: current or voltage
    Possibility of making the range of inputs / outputs on special order.


    Wire connection
    Separation Input / Output / Power
    Dielectric strength DC: 2000V AC
    AC: 1500V AC
    Ranges selection To be determined when ordering
    Double exit Yes
    Power AC / DC
    Operating Temperature - 5 to + 55 ° C < / td>
    Mounting DIN rail
    Dimensions 29.5x88.5x124mm
    < td style = "padding-left: 20px"> M3 screw terminals < / table>
    Меньше
    Читать больше
    Комментарии (0)
    Wire connection
    Separation Input / Output / Power
    Dielectric strength DC: 2000V AC
    AC: 1500V AC
    Ranges selection To be determined when ordering
    Double exit Yes
    Power AC / DC
    Operating Temperature - 5 to + 55 ° C < / td>
    Mounting DIN rail
    Dimensions 29.5x88.5x124mm
