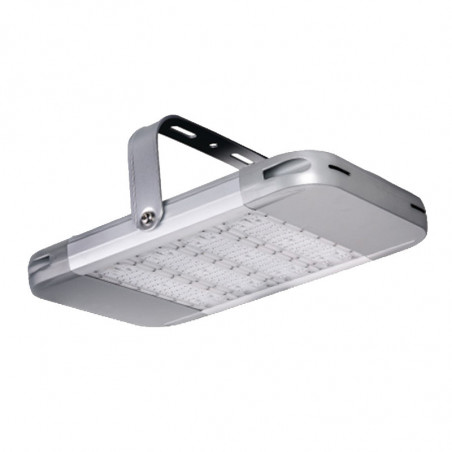

High Bay HT-120-90-4K-0BSE 200W
  • High Bay HT-120-90-4K-0BSE 200W

Фотографии предназначены только для информационных целей. Посмотреть спецификацию продукта

please use latin characters

Производитель: KSE Lights

High Bay HT-120-90-4K-0BSE 200W

High Bay Series HT-11200

High Bay Series HT-11200-
- 90-4000-HE wide beam 90o
- 60-4000-HE narrow beam 60o

The light distribution of the HE-series is generated by a special optic. Because of this optic, a traditional reflector is not needed anymore. By using this optics, the lumen loss gets reduced and the whole lamp efficiency gets better. By using different optics, we can create light distributions for almost every industrial scenario. The photometrical files of these luminaires can be downloaded on our homepage. High Bay luminaire is used for light industrial and is used in areas such as production halls, workshops, warehouses, laboratories, shopping space, underground car parks, garages, service stations. Lightings are available with interchangeable lenses of different angle of propagation of light, or as a compact lamps using LED modules.

Oprawa high bay HT-11200
Oprawa high bay HT-11200-90-4000-HE
Oprawa high bay HT-1120


Oprawa high bay HT-1120-60-4000-HE

Specyfications
high protection grade IP65 / IK08

Name Seria hight bay HE
Power 200W
Lumen output 1900
CCR 4000k ( inne opcjonalnie)
CRI >70
Ifespan at 25 ° C 60.000h
Failure rate 0,10 % dla  5000 h
Usage temparature -40 ° C do + 50 ° C
Driver integrated
Voltaeg AC 100 V - 240 V, 50/60 Hz
Dimm function (optional) 10% do 100%
Housing material aluminium
Housing color silver / grey silver/ grey
Optics wide beam narrow beam
Optical cover PC lenses
Maintenence LED ENGINE changeble
Warranty time 5 years
Weight 8,1

Oprawa high bay HT-11200

Delivery information:

  • CCT LEDs 4.000 K/740
  • simple electronic driver without optional functions
  • mounting bracket for easy insallation
  • optional with a dimmable electronic driver. Dimmable over 1-10V DC interface, PWM or resitance. on request also DALI-interface
