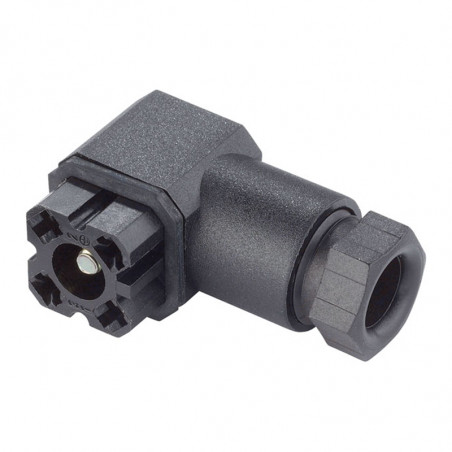

Прямоугольные разъемы G серии
  • Прямоугольные разъемы G серии

Фотографии предназначены только для информационных целей. Посмотреть спецификацию продукта

please use latin characters

Производитель: Hirschmann

Прямоугольные разъемы G серии


Junction description: angular socket angular socket
Junction type
 G 30 W 3 F G 4 W 1 F
Symbol:  932-186-100 932-157-100
Contacts quantity 3+ PE 4
Gland PG 7 PG 7
Wire diameter:
Wire section
 max. 0,14 - 0,5 mm2 max. 0,14 - 0,5 mm2
Casing colour
 black black
Drawing:
Technical data
PIN dimension

Operating voltage: DC 250 V, AC 250V DC 50 V, AC 50V
Current DC 6 A, AC 6 A DC 6 A, AC 6 A
Cable connection soldering soldering
IP IP 65 IP 65
Operation temperature
 -40 C do 90 C -40 C do 90 C
Contact material
Contact surface: Sn Sn
Casing material: PA PA
Ring:
Certificates:
 VDE 0627 / IEC 61984 VDE 0627 / IEC 61984
Package: 100 pce 100 pce
Matching joints
 G 30 A 5 M G 4 A 1 M



Junction description: angular socket angular socket
Junction type GO 51 WF GO 610 WF
Symbol:  932-351-200 932-484-100
Contacts quantity 5 + PE 6 + PE
Gland PG 7 PG 11
Wire diameter:
Wire section max. 0,14 - 0,5 mm2 max. 0,25 - 1 mm2
Casing colour black black
Drawing:
Technical data
PIN dimension:
Operating voltage: DC 250 V, AC 250V DC 250 V, AC 250V
Current: DC 6 A, AC 6 A DC 10 A, AC 10 A
Cable connection  soldering soldering
IP IP 65 IP 65
Operation temperature -40 C do 90 C -40 C do 90 C
Contact material:
Contact surface: Sn Sn
Casing material: PA PA
Ring:
Certificates:
 VDE 0627 / IEC 61984 VDE 0627 / IEC 61984
Package: 100 pce 100 pce
Matching joints GO 51 UM GO 610 FA M



Junction description: Plug assembled on the panel Plug assembled on the panel
Junction type G 30 A 5 M G 4 A 5 M
Symbol:  932-840-100 932-092-100
Contacts quantity 3+ PE 4
Gland
Wire diameter:
Wire section
Casing colour black czarny
Drawing:
Technical data
PIN dimension: 2,8mm x 0,8 mm 2,8mm x 0,8 mm
Operating voltage: DC 250 V, AC 250V DC 50 V, AC 50V
Current: DC 10 A, AC 10 A DC 10 A, AC 10 A
Cable connection  soldering soldering
IP IP 65 IP 65
Operation temperature -40 C do 90 C -40 C do 90 C
Contact material:
Contact surface: Sn Sn
Casing material: PA PA
Ring:
Certificates:
 VDE 0627 / IEC 61984 VDE 0627 / IEC 61984
Package: 100 pce 100 pce
Matching joints G 30 W 3 F G 4 W 1 F



Junction description: Plug assembled on the panel Plug assembled on the panel
Junction type GO 51 UM GO 610 FA M
Symbol:  932-352-100 932-478-100
Contacts quantity 5+ PE 6+ PE
Gland
Wire diameter:
Wire section
Casing colour black black
Drawing:
Technical data
PIN dimension: 2,8mm x 0,8 mm diameter: 1,6 mm
Operating voltage: DC 250 V, AC 250V DC 250 V, AC 250V
Current: DC 6 A, AC 6 A DC 6 A, AC 10 A
Cable connection  soldering soldering
IP IP 65 IP 65
Operation temperature  -40 C do  90 C  -40 C do  90 C
Contact material:
Contact surface: Sn Sn
Casing material: PA  PA
Ring:
Certificates:
 VDE 0627 / IEC 61984 VDE 0627 / IEC 61984
Package: 100 pce. 100 pce.
Matching joints GO 51 WF plik GO 610 WF
