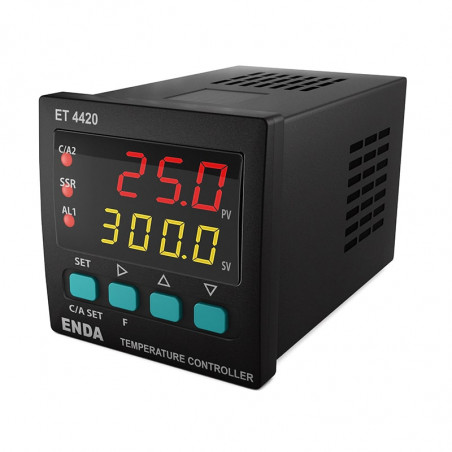

Регуляторы температуры

Technical data:

- Accuracy		±0,2% (of full scale) 1 digit
- Scale		Depending on regulator
	Pt100	-200... 600°C
	Pt100	-99,9...300°C
	Thermocouple J	0...600°C
	Thermocouple K	0...1200°C
	Thermocouple T	0...400°C
	Thermocouple S	0...1600°C
	Thermocouple R	0...1600°C
- Output		relay, 2A, 250V AC logic 0/24 DC, 20mA
- Alarm output		2A, 250V AC, selection NO/NC
- Display		4 red digits LED, measured value 4yellow digits LED, set value
- Keyboard		microswitch
- Supply voltage		230V AC +10%, -20%, 50/60HZ, 9-30VDC/7-24±10% SMPS, 24V AC ±10%, 50/60Hz (chosen during order)
- Operation temperature		0...50°C

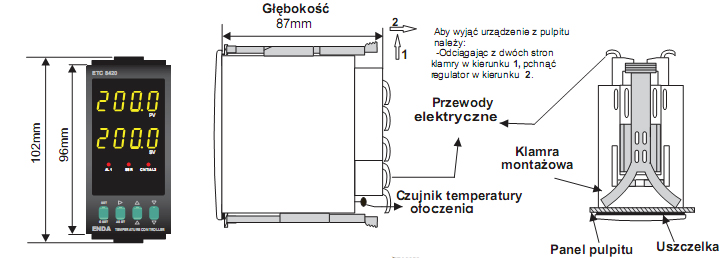

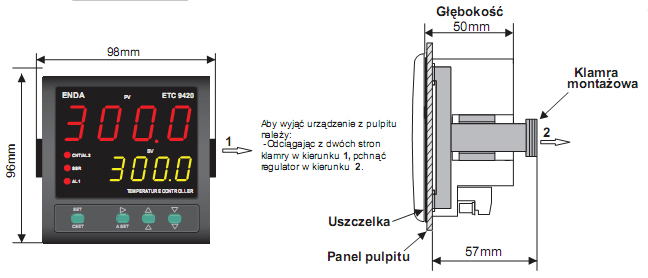

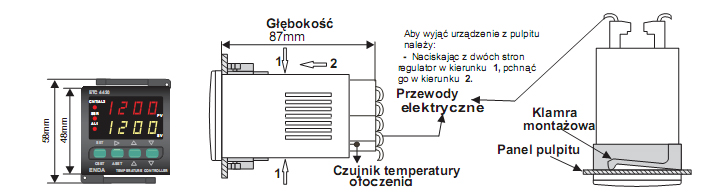

- Dimensions		ET4420 48x48x87mm ET7420 72x72x97mm ET8420 48x96x87mm ET9420 96x96x50mm

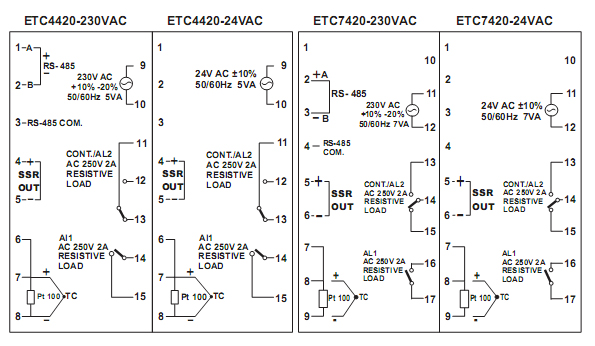

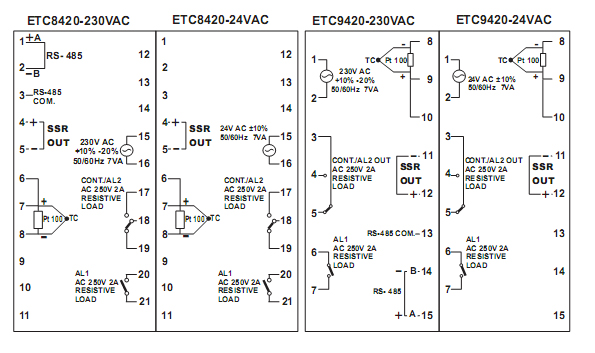

- wiring		Wiring 2.5mm² screw-terminal connections
- Weight		ET4420 250g (after packing) ET7420 395g (after packing) ET8420 395g (after packing) ET9420 410g (after packing)

Independent Alarm A1.tP. indE = (ASV min =beginning of scale ASV max =end of scale)) SV=Set point of CONT output

Deviation Alarm A1.tP. DE. ASV min. =-300, ASV max. = +300) (If , inP Pt..0 = ASV min. = -30.0,ASV max. = +30.0) ASV = ASV = Set point of alarm output

Band Alarm = A1.tP. bAnd SV =Set point of CONT output ASV = Set point of AL1 output (ASV min. = 0, ASV max. = +300) (lfinP = Pt..0,ASV min.=0.0,ASV max.=+30.0)

Band Alarm With Inhibition SV =Set point of CONT output ASV = Set point of AL1 output (ASV min. = 0, ASV max. = 300 ))

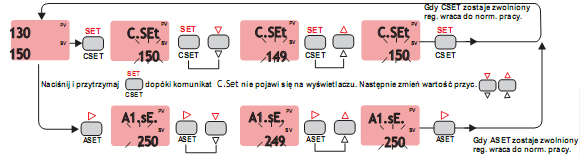

First, press and holdj key, alarm setpoint value appears on the display. Then, the value is adjusted by usingAlarm1 and Alarm2 setpoint values can be adjusted in sequence when per press

NOTE: The maximum of is the value of parameter and the minimum of it is the value of parameter.
If independent alarm is selected, A1.SE. and values can be adjusted between the limits of the full scale.
If deviation alarm is selected, A1.SE. and A2.SE. values can be adjusted between - and + .
If band alarm is selected, A1.SE. and A2.SE. values can be adjusted between 0 and +300.



Order Code:

1 - Dimension 4420 .....48x48x87mm 7420 .....72x72x97mm 8420 .....48x96x87mm 9420 .....96x96x50mm

2 - Supply Voltage 230VAC...230V AC 24VAC.....24V AC SM...........9-30V DC / 7-24V AC

3 - Modbus Option RS........RS-485 Modbus communication None....Don’t support RS-485 Modbus communication

TECHNICAL SPECIFICATIONS

Input type		Temperature range
J (Fe-CuNi) K (NiCr-Ni) T (Cu-CuNi) S (Pt10Rh-Pt) R (Pt13Rh-Pt) Pt 100 Pt 100	EN 60584 EN 60584 EN 60584 EN 60584 EN 60584 EN 60751 EN 60751	0... 600°C 0...1200°C 0...  400°C 0...1600°C 0...1600°C -200...600°C -99.9...300.0°C	+32... +1112°F +32... +2192°F +32...   +752°F +32... +2912°F +32... +2912°F -328... +1112°F -99.9...+543.0°F
