Производитель: Raychem RPG (P)

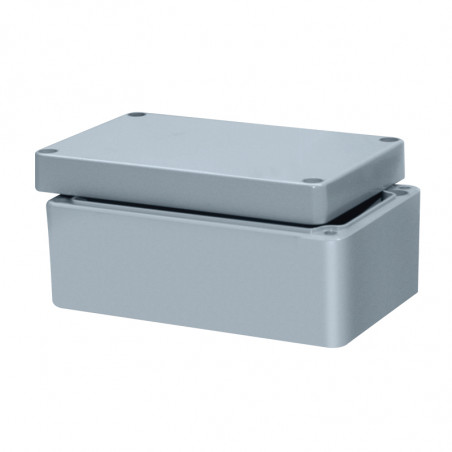

RJ / AK - IP66 алюминиевый корпус

Aluminum Standard Enclosures RJ are known for providing complete safety to your electrical equipment. We are well equipped with all the facilities required to modify the standard enclosure as per the customer’s requirement. These customized services include machining, painting, silk screen printing.


Technical information:

Material Aluminum Alloy (AlSi12)
IP IP 66 (IP67, IP68 on Request)
Impact Energy IK 09 (10 Joules)
Temperature Range -40°C to +80°C (Neoprene)
-60°C to +140°C (Silicone)
-30°C to +150°C (Viton)
-55°C to +125°C (EMC)
Gasket Neoprene , Silicone, Viton, EMC
Color 1. Natural Finish (Pretreated)
2. RAL 7001 (Other colours on Request)



Part Code No.External Dimensions (mm)External Dimensions (inches)
LengthWidthHeightLengthWidthHeight
RJ01 50 45 30 1.97 1.77 1.18
RJ02 98 64 34 3.86 2.52 1.34
RJ03 150 64 34 5.91 2.52 1.34
RJ04 58 64 34 2.28 2.52 1.34
RJ05 75 80 57 2.95 3.15 2.24
RJ06 125 80 57 4.92 3.15 2.24
RJ07 175 80 57 6.89 3.15 2.24
RJ08 250 80 57 9.84 3.15 2.24
RJ09 100 100 81 3.94 3.94 3.19
RJ10 160 100 81 6.3 3.94 3.19
RJ11 122 120 81 4.8 4.72 3.19
RJ12 220 120 90 8.66 4.72 3.58
RJ13 260 160 90 10.24 6.3 3.54
RJ14 360 160 90 14.17 6.3 3.54
RJ15 160 160 91 6.3 6.3 3.54
RJ17 280 230 110 11.02 9.06 4.33
RJ18 330 230 110 12.99 9.06 4.33
RJ19 230 200 110 9.06 7.87 4.33
RJ20 330 230 180 12.99 9.06 7.09
RJ21 220 120 81 8.66 4.72 3.19
RJ22 122 120 91 4.8 4.72 3.58
RJ28 180 180 100 7.09 7.09 3.94
RJ29 280 180 100 11.02 7.09 3.94
RJ30 230 200 180 9.06 7.87 7.09
RJ31 400 310 110 15.75 12.2 4.33
RJ32 400 310 180 15.75 12.2 7.09
RJ33 600 310 110 23.62 12.2 4.33
RJ34 600 310 180 23.62 12.2 7.09
RJ35 400 230 110 15.75 9.06 4.33
RJ36 140 140 90 5.51 5.51 3.58
RJ37 200 140 90 7.87 5.51 3.54
