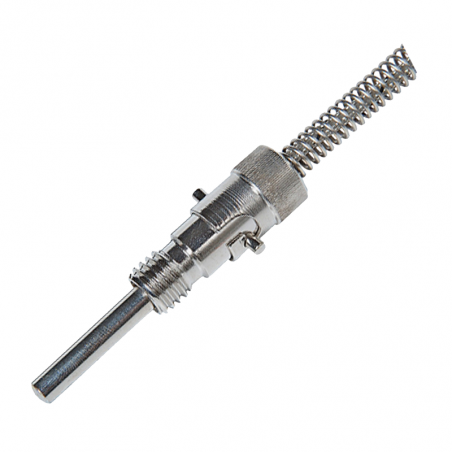

Пальто термопары (J, K, N) - TC-42

Thermocouple is made from electro thermal wires in insulation made from hardly pressed mineral (MgO) powder and metal coat which provide mechanical and chemical protection of measurement weld and thermo electrodes. This type of construction allows to obtain small diameter and big flexibility. Coat thermocouple has good mechanical and chemical thermocouple and quick response time.

SPECYFICATION
THERMOCOUPLE PERSONIFICATION
Coat insert Measurement range - class 1
1xFe-CuNi (J), 2xFe-CuNi (J) -40°C...+800°C.
1xNiCr-NiAl (K), 2xNiCr-NiAI (K) -40°C.. + 1000°C
1xNiCrSi-NiSiMg(N), 2xNiCrSi-NiSiMg (N) 0°C..+1100°C (* -270°C..+1300°C)
Characteristic
according to PN-EN 60584-1

Coat
Średnica płaszcza
d [mm]		 Sleeve diameter
D [mm]		 Coat material Length
L [mm]		 Bending radius
R MIN		 Weld type
Ø1 Ø4 Inconel arbitrary 3d

insulated

grounded
Ø1,5
Ø2 Ø5
Ø3 Ø6
Ø4,5 Ø8
Ø6
Ø8 Ø10

Dynamical properties
Medium T0.5
Water 0.35 ÷ 2.5 s
Operating pressure
20MPa


Marking:
A. Execution
 A

Basic
 WT

With sleeve and terminals
 WTT

With sleeve and cables
 WTTp

With compensating cable
 WTTKbm

With thermocouple plug
 WTW

With plug and compensation cable
 WTWKbm

Spark safe basic
 WT/Exi

Spark safe with sleeve and terminals.
 WTT/Exi

Spark safe with sleeve and cables.
 WTTp/Exi

Spark safe with compensation cable.
 WTTKbm/Exi

Spark safe with thermo couple plug.
 WTWExi

Spark safe with plug and compensation cable.
 WTWKbm/EKi
B. Thermo element type
 B

1xFe-CuNi
 1xJ

2xFe-CuNi
 2xJ

1xNCr-NA
 1xK

2xNiCr-NiAl
 2xK

1xNiCrSi-NiSiMg
 1xN

2xNiCrSi-NiSiMg
 2xN
C. Shield diameter
 C

Ø1 mm
 1

Ø1.5 mm
 1.5

Ø2 rnm
 2

Ø3 mm
 3

Ø4.5 mm
 4.5

Ø6 mm
 6

Ø8 mm
 8
D. Shield length
 D

L
 give in mm
E. Compensation cable type
 E

UGGD-J-0.22mm2
 L2GGD-J-0.22

UGGD-K-0.22mm2
 L2GGD-K-0.22

L2TDT-J-0.22mm2
 L2"TOT-J-D,22

L2TDT-K-0.22min2
 L27DT-K-0,22

USS-J-0.22mm2
 L2SS-J-0.22

L2SS-K-0.22mm2
 L2SS-K-0.22

L4GGD-J-0.22mm2
 L4GGD-J-0.22

L4GGD-K-0.22mm2
 L4GGD-K-0.22
F. Terminal length LK (compensation cable)
 F

LK
 give in mm
G. Weld type
 G
  Insulated O

Grounded
 Z
H. Operation temperature
 H

T
 give in °C
