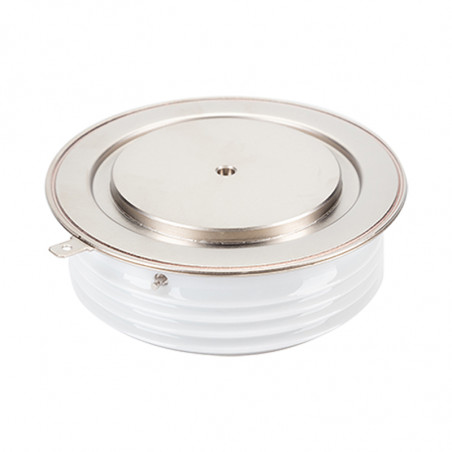

ABB Thyrystors.

Standard Thyristors - ABB


Type VDRM
[V]		 ITAV
[A]		 ITSM
[kA]		 Package*
[mm]		 Housing
[Drawing No.]

5STP 06T1600

 1600 641 9.9 52.5/29.5 9/ABB

5STP 10D1601

 1600 969 15.0 58.5/34 5/ABB

5STP 10T1600

 1600 969 15.0 58.5/34 6/ABB

5STP 20F1601

 1600 1901 27.3 74.5/47 4/ABB

5STP 20T1600

 1600 1956 27.3 74.5/47 4/ABB

5STP 34H1601

 1600 3370 49.0 101.5/63 7/ABB

5STP 34T1600

 1600 3370 49.0 101.5/63 10/ABB

5STP 07D1800

 1800 730 9.0 58.5/34 11/ABB

5STP 09D1801

 1800 932 13.7 58.5/34 5/ABB

5STP 18F1800

 1800 1660 21.0 74.5/47 4/ABB

5STP 18F1801

 1800 1825 26.2 74.5/47 4/ABB

5STP 18T1800

 1800 1870 26.2 74.5/47 12/ABB

5STP 30H1801

 1800 3108 47.0 102/63 7/ABB

5STP 42L1800

 1800 4390 64.0 120/78 13/ABB

5STP 30T1800

 1800 3108 47.0 101.5/63 10/ABB

5STP 50Q1800

 1800 6100 94.0 150/100 14/ABB

5STP 09D2201

 2200 863 12.0 58.5/34 5/ABB

5STP 17F2201

 2200 1702 25.5 74.5/47 4/ABB

5STP 17T2200

 2200 1743 25.5 74.5/47 12/ABB

5STP 29H2201

 2200 2855 45.0 101.5/63 7/ABB

5STP 29T2200

 2200 2855 45.0 101.5/63 10/ABB

5STP 06D2800

 2800 620 8.8 60/34 11/ABB

5STP 08T2800

 2800 792 10.6 58.5/34 6/ABB

5STP 08D2801

 2800 792 10.6 58.5/34 5/ABB

5STP 15T2800

 2800 1589 23.6 74.5/47 12/ABB

5STP 16F2800

 2800 1400 18.0 74.5/47 15/ABB

5STP 16F2801

 2800 1554 23.6 74.5/47 4/ABB

5STP 27H2801

 2800 2670 43.0 101.5/63 7/ABB

5STP 27T2800

 2800 2670 43.0 101.5/63 10/ABB

5STP 33L2800

 2800 3740 65.5 120/78 13/ABB

5STP 45N2800

 2800 5080 77.0 150/100 16/ABB

5STP 45Q2800

 2800 5490 77.0 150/100 14/ABB

5STP 04D4200

 4200 470 7.1 60/34 11/ABB

5STP 12F4200

 4200 1150 17.3 75/47 15/ABB

5STP 21H4200

 4200 2192 32.0 101.5/63 7/ABB

5STP 28L4200

 4200 3170 54.0 120/78 13/ABB

5STP 38N4200

 4200 3960 64.5 150/100 16/ABB

5STP 38Q4200

 4200 4275 64.5 150/100 14/ABB

5STP 04D5200

 5200 440 6.1 60/34 11/ABB

5STP 17H5200

 5200 1975 34.0 102/63 17/ABB

5STP 25L5200

 5200 2760 50.5 120/78 13/ABB

5STP 25M5200

 5200 2540 50.5 120/78 18/ABB

5STP 34N5200

 5200 3600 63.0 150/100 16/ABB

5STP 34Q5200

 5200 3875 63.0 150/100 14/ABB

5STP 52U5200

 5200 5120 99.0 172/110 19/ABB

5STP 03X6500

 6500 350 4.7 60/34 20/ABB

5STP 03D6500

 6500 380 4.7 60/34 21/ABB

5STP 08F6500

 6500 830 15.1 75/47 22/ABB

5STP 08G6500

 6500 720 15.1 75/47 23/ABB

5STP 12K6500

 6500 1370 31.5 102/63 24/ABB

5STP 18M6500

 6500 1800 47.5 120/78 18/ABB

5STP 26N6500

 6500 2810 65.0 150/100 16/ABB

5STP 42U6500

 6500 4250 86.0 172/110 16/ABB

5STP 48Y7200

 7200 4840 92.0 192/138 25/ABB

5STP 45Y8500

 8500 4240 90.0 192/138 25/ABB
Fast Thyristors from ABB
Type VDRM
[V]		 ITAV
[A]		 ITSM
[kA]		 Package*
[mm]		 Housing
[Drawing No.]

5STF 13F1220

 1200 1252 21.0 74.5/47 4/ABB

5STF 15F1232

 1200 1532 21.0 74.5/47 4/ABB

5STF 07D1413

 1400 710 12.0 58.5/34 5/ABB

5STF 07T1413

 1400 710 12.0 58.5/34 6/ABB

5STF 09D1420

 1400 847 13.0 58.5/34 5/ABB

5STF 09T1420

 1400 847 13.0 58.5/34 6/ABB

5STF 12F2040

 2000 1202 17.0 74.5/47 4/ABB

5STF 14F2063

 2000 1440 17.0 74.5/47 4/ABB

5STF 23H2040

 2000 2322 42.0 10.5/63 7/ABB

5STF 28H2060

 2000 2667 47.0 10.5/63 7/ABB

5STF 10F3080

 3000 1003 13.0 74.5/47 4/ABB

5STF 11F3010

 3000 1112 14.0 74.5/47 4/ABB

5STF 18F1210

 1200 1779 22.0 74.5/47 4/ABB

5STF 06D1408

 1400 568 11.0 58.5/34 5/ABB

5STF 06T1408

 1400 568 11.0 58.5/34 6/ABB

5STF 07D1414

 1400 736 12.0 58.5/34 5/ABB

5STF 07T1414

 1400 736 12.0 58.5/34 6/ABB

5STF 16F1413

 1400 1526 21.0 74.5/47 4/ABB

5STF 17F1420

 1400 1693 21.0 74.5/47 4/ABB

5STF 06D2020

 2000 557 8.0 58.5/34 5/ABB

5STF 06T2020

 2000 557 8.0 58.5/34 6/ABB

5STF 07D2032

 2000 679 9.0 58.5/34 5/ABB

5STF 07T2032

 2000 679 9.0 58.5/34 6/ABB

5STF 12F2025

 2000 1191 17.0 74.5/47 4/ABB

5STF 15F2040

 2000 1489 17.0 74.5/47 4/ABB

5STF 05D2425

 2400 517 7.0 58.5/34 5/ABB

5STF 05T2425

 2400 517 7.0 58.5/34 6/ABB

5STF 06D2440

 2400 617 8.0 58.5/34 5/ABB

5STF 06T2440

 2400 617 8.0 58.5/34 6/ABB

Bi-directional Controlled Thyristors (BCT) from ABB
Type VRM
[V]		 IT(AV)M
[A]		 ITSM [kA] Package*
[mm]		 Housing
(Drawing No.)

5STB 24N2800

 2800 2430 43 150/100 1/ABB

5STB 24Q2800

 2800 2630 43 150/100 2/ABB

5STB 18N4200

 4200 1920 32 150/100 1/ABB

5STB 17N5200

 5200 1800 29 150/100 1/ABB

5STB 25U5200

 5200 1980 42 172/110 3/ABB

5STB 13N6500

 6500 1405 22 150/100 1/ABB

5STB 18U6500

 6500 1580 29.7 172/110 3/ABB

Reverse Conducting Thyristors (RCT) from ABB
Type VRM [V] IT(AV)M
[A]		 ITSM
[kA]		 Package*
[mm]		 Housing
[Drawing No.]

5STR 03T2040

 2000 360 5.0 58.5/34 6/ABB

5STR 10T2520

 2500 857 14.0 100/63 8/ABB

Asymmetric Integrated Gate-Commutated Thyristors (IGCT) from ABB
Type VDRM
[V]		 VDC
[V]		 ITGQM
[A]		 IT(AV)M
[A]		 Package*
[mm]		 Housing
[Drawing No.]

5SHY 35L4520

 4500 2800 4000 1700 85/26 26/ABB

5SHY 35L4521

 4500 2800 4000 1700 85/26

5SHY 35L4522

 4500 2800 4000 2100 85/26

5SHY 40L4511

 4500 2800 3600 1430 85/26

5SHY 55L4500

 4500 2800 5000 1870 85/26

5SHY 50L5500

 5500 3300 3600 1290 85/26

5SHY 42L6500

 6500 4000 3800 1290 85/26

*Note: maximum diameter / pole-piece diameter
Thyristor Casing - ABB

Drawing J/ABB

Drawing I/ABB

Drawing D1/ABB

Drawing F1/ABB

Drawing H1/ABB

Drawing 3/ABB

Drawing 1/ABB

Drawing 2/ABB

Drawing 6/ABB

Drawing 4/ABB

Drawing 5/ABB

Drawing 7/ABB

Drawing 8/ABB

Drawing 9/ABB

Drawing 10/ABB

Drawing 11/ABB

Drawing 12/ABB

Drawing 13/ABB

Drawing 14/ABB

Drawing 15/ABB

Drawing 16/ABB

Drawing 17/ABB

Drawing 18/ABB

Drawing 19/ABB

Drawing 20/ABB

Drawing 21/ABB

Drawing 22/ABB

Drawing 23/ABB

Drawing 24/ABB

Drawing 25/ABB

Drawing 26/ABB
