Производитель: Kyoritsu

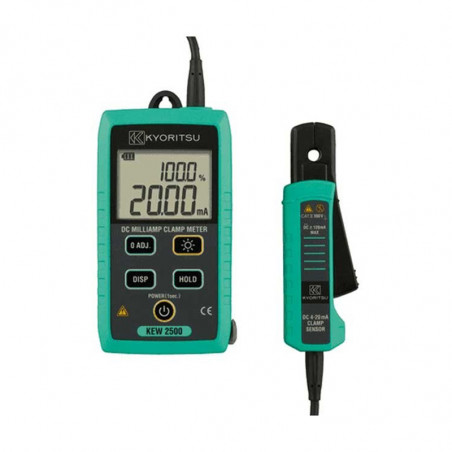

Kew 2500 измеритель соединения текущей петли

  • 0.01mA resolution for DC current
  • Top class measurement 0.2% accuracy
  • Ø6mm clamp jaw easy to use in tight places
  • Measurement from 0.01mA to 120.0mA
  • Dual display with backlight shows both mA measurement and percent of 4-20 mA span
  • Spotlight for illuminating measurement point
  • Analog output terminal for recorder connection
  • Complies with IEC61010-1 CAT.Ⅱ300V



Applications
Measures DC mA signals used in industrial automation equipment, PLC, transmitters, process control and analog I/0 systems without breaking the loop.
Kew 2500 is ideal for measuring the level of 4-20 mA signals correlating process indi-cation with real physical value.
Very useful to maintain and troubleshoot process and automation equipment without breaking the loop and stopping the process.

KEW 2500

DC A 20/100mA(Auto ranging)
±0.2%rdg±5dgt(0.00mA～21.49mA)
±1.0%rdg±5dgt(21.0mA～120.0mA)
Conductor size φ6mm max.
Analog output Recorder: DC1000mV against DC100mA
Withstand voltage 2210V AC for 5 seconds
Applicable standards IEC 61010-1, 61010-2-030 CAT.Ⅱ 300V IEC 61010-2-032
IEC 61326-1, 61326-2-2
IEC 60529 IP40
Operating temperature [&] humidity -10～+50℃ < 85%
Storage temperature [&] humidity -20～+60℃ < 85%
Power source R6/LR6(AA) (1.5V) × 4
Dimensions 111(L) × 61(W) × 40(D)mm : Display unit
104(L) × 34(W) × 20(D)mm : Sensor
700mm : Sensor cable
Weight Approx. 290g (including batteries)
Accessories 9096(Carrying case) LR6(AA) × 4
Instruction manual, Calibration certificate
Optional 7256(Output cord)
