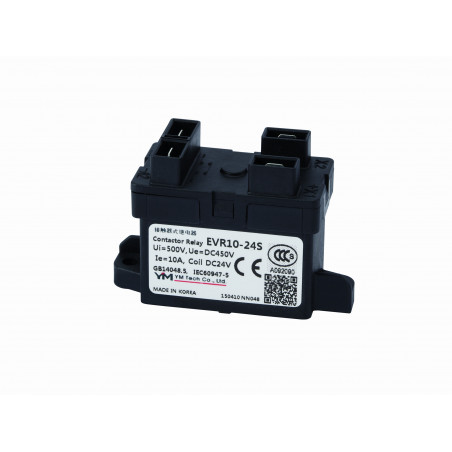

ДЦ ЕВР10 релеј

  • EVR10

Application

  • Pre-Charge Relay,
  • Electric Vehicle,
  • Charging System,
  • Solar System,
  • etc.

Magnet coil ratings

Nominal voltage (v)Nominal current (mA)Coil resistance (Ω)Pick-up voltage (V)MaxDrop-out voltage (V)MinMax. voltage (V)MaxCoil power(W) dissipation
AC 6 226.5 9.5 80% Min. 30% Max 130% 1.5~1.8VA (60Hz)
12 112 35
24 56 140
50 28 600
100 / 110 11.2 / 12.4 3,030
200 / 220 8.8 / 9.7 10,800
DC 6 200 30 75% Min. 10% Max. 130% 1.1~1.3 Approx.
12 100 120
28 43 650
24 50 480
36 34 1,080
48 25 1,920
60 20 3,000
72 17 4,320
100 / 110 11 / 12 9,350

Contact ratings

Type1Pole Resistive load (L/R≤1㎳)
Max. switching current (wire size 2.0㎟) 10A
Max. switching capacity 1200VDC 2A
Contact rating switching voltages 12~1200VDC
900VDC 10A(Resistive load)(+ polarity Main Terminal A1 and A2) each NO contact connected in series
Max. contact performance (wire size 2.0㎟) 30A 120Sec.
20A 180Sec.
Voltage drop across contacts per 10A 0.1V Max.
Min, permissible load 12V DC 0.1A
Description S.P.S.T On/Off, (1a)

Characteristics

Initial insulation resistanceMin. 100㏁ 500V DC
Expected life Mechanical (Min.) 2×106
Electric (L/R≤1㎳) 450V DC 10A 7×104
250V DC 15A 2×105
Initial breakdown voltage Between open contacts 2500V AC 60 Sec. 10mA
Between contacts & coil 2500V AC 60 Sec. 10mA
Operate time (at 20℃) Max. 20㎳
Release time (at 20℃) Max. 5㎳
Shock resistance Functional Min 196 ㎨ {20G},(10㎲)
Destructive Min 490 ㎨ {50G}
Vibration resistance Functional 43 ㎨ {4.4G} 10 to 200㎐,(10㎲)
Destructive 43 ㎨ {4.4G} 10 to 200㎐
Conditions for operation transport and storage Ambient temperature -40℃ to +85℃
Humidity 5 to 85% R.H.
Unit weight 65g
