Application

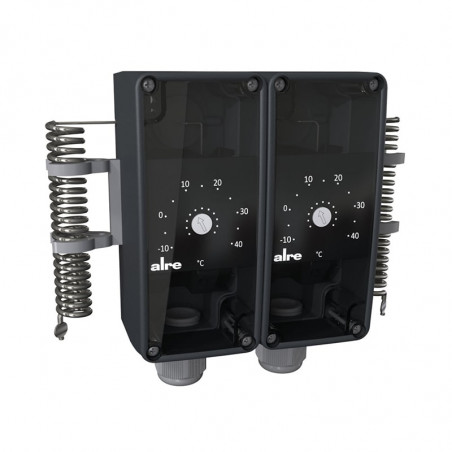

RTKSA plant room thermostats were specially developed for use in industrial halls, exhibition halls, air halls and greenhouses. When used as a frost protection controller, the higher tolerances at the end of the scale must be observed. 2 separate setting ranges, heating and/or cooling.
Technical data
Color: | Anthracite grey (similar to RAL 7016), front side transparent |
Sensor material: | V4A |
Max. sensor temperature | Top scale value +15% |
Max. head temperature: | 50 °C |
Permissible atmospheric humidity: | Max. 95% rel. humidity, non-condensing |
Operating voltage: | none |
Max. switching current: | NC contact: 16 (2.5) A at 230 VAC +10% 0.25 A at 230 VDC +10% NO contact: 6.3 (2.5) A at 230 VAC +10% 0.25 A at 230 VDC +10% |
Min. switching current: | Min. 100 mA at 24 V (AC/DC) |
Max. switching voltage: | 230 VAC 50/60 Hz, 230 VDC |
Min. switching voltage: | 24 VAC/50 Hz, 24 VDC |
Switching element: | microswitch |
Switching contact: | 2 x togglers, potential-free |
Control function: | Heating or cooling, heating and cooling |
Hysteresis: | 1.3 K |
Electrical connection: | Push-in terminals |
Mounting/attachment: | wall mounting |
Protection class: | I |
Protection rating: | IP 54 (optionally IP 65) |
Safety and EMC: | In accordance with DIN EN 60730 (VDE 0631) |
Sensor: | liquid-filled capillary |
General features: | Scale: degrees Celsius |
Type testing by TÜV in accordance with DIN EN 14597
Type | Item no. | 1st Control range | 2nd Control range | Features | PG |
---|---|---|---|---|---|
RTKSA-114.110 | KA011100 | 0…+50 °C (TW, internal) | 0…+50 °C (TW, internal) | 2 x internal setting | II |
RTKSA-114.010 | KA011101 | −10…+40 °C (TW, internal) | −10…+40 °C (TW, internal) | 2 x internal setting | II |
Type comparison (old/new type)
Old alre types | Control range | Hysteresis | New alre types | Control range | Hysteresis |
---|---|---|---|---|---|
JET-30 | 10…45 °C (external) TR 0 ...35 °C (internal) TW |
approx. 1 K | RTKSA-114.110 | 0…+50 °C (internal) TW 0…+50 °C (internal) TW |
1.3 K |
JET-31 | 10…+45 °C (internal) TW 0…+35 °C (internal) TW |
approx. 1 K |
TR = temperature controller, TW = temperature monitor
Type testing by TÜV in accordance with DIN EN 14597
