ТАОБ5-Ц5 Величина 3 Индустријски расхладници уља
  • ТАОБ5-Ц5 Величина 3 Индустријски расхладници уља
  • ТАОБ5-Ц5 Величина 3 Индустријски расхладници уља

Фотографије су само у информативне сврхе. Погледајте спецификацију производа

please use latin characters

Произвођач: TEXA industries

ТАОБ5-Ц5 Величина 3 Индустријски расхладници уља

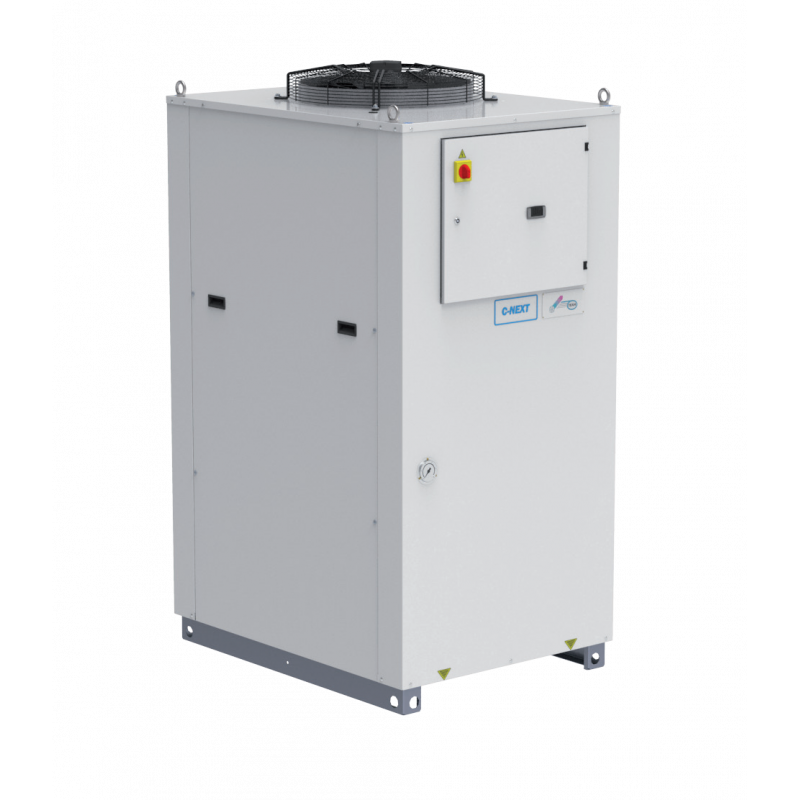

TAOB5-C5 Size 3

Industrial oil chillers

AIR CONDENSER
Microchannel condensing coil, complete with safety grille.
AXIAL FAN
Axial fan, complete with thermal cut-out and safety grille.
HYDRAULIC CIRCUIT
Hydraulic circuit with screw pump without tank, with maximum available pressure 10 bar, high- and low-pressure safety pressure switch, 0-25 bar oil pressure gauge, regulation sensor.
ELECTRICAL PANEL
With main disconnect switch, relay motor protection, phase sequence relays.
MANAGEMENT AND CONTROL
The TX200 control unit manages the operation of the chiller and provides complete operator alarm diagnostics. An on-off contact allows the machine to be switched on remotely. Illuminated control selector. Possibility of remote display for machine regulation.
PAINT/COATING
Standard colour: RAL 7035 textured.
MAIN ACCESSORIES
BA - Mechanical bypass valve protecting the pump
LTA - Operation at low ambient temperatures
FP - Polyurethane air filter
RU - Castors
TD - Differential fluid temperature management (two sensors)
BGC - Hot gas bypass for +/- 1 K temperature precision
BGP - Hot gas bypass for +/- 0.5 K temperature precision
UL1 - UL certified electrical panel and components
HP/HS - Harting type connectors
- Outdoor installation optionals
STRUCTURE
In powder-coated steel sheet, RAL 7035 textured finish. Easily removed panels
COMPRESSOR
Hermetic scroll compressor, cooled by the refrigerant, complete with thermal cut-out.
REFRIGERATION CIRCUIT
Complete with charging port, liquid receiver, drier filter, thermostatic valve, high- and low-pressure pressure switch, R410A refrigerant.
EVAPORATOR
Brazed stainless-steel plate model.
