![Термални релејни ПТЦ Тип МС220Ц Термални релејни ПТЦ Тип МС220Ц](https://www.dacpol.eu/7859-large_default/termalni-releni-ptc-tip-ms220c.jpg)
![Термални релејни ПТЦ Тип МС220Ц Термални релејни ПТЦ Тип МС220Ц](https://www.dacpol.eu/7859-large_default/termalni-releni-ptc-tip-ms220c.jpg)
Морате бити пријављени да
Фотографије су само у информативне сврхе. Погледајте спецификацију производа
please use latin characters

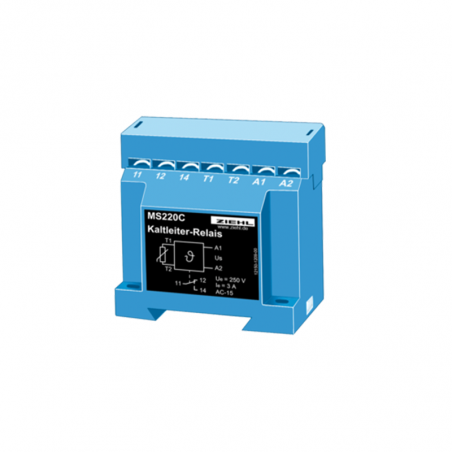

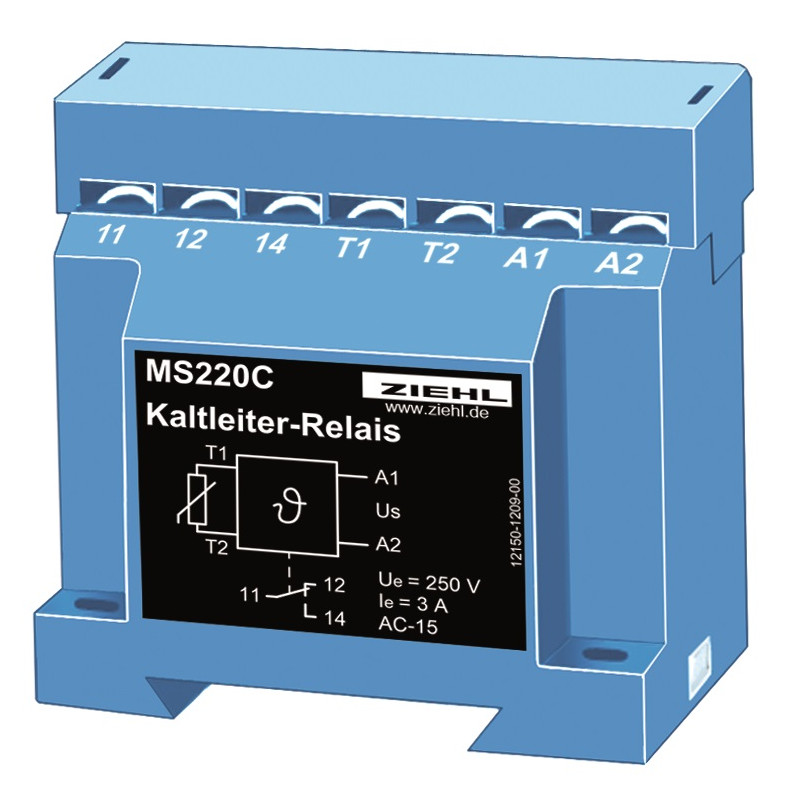

This compact device is the smallest version of all our PTCresistor relays.
Part number:
|
Rated supply voltage Us | AC 220 - 240 V ± 10% 50/60 Hz ≤ 2 VA AC / DC 24 V, AC ± 10 / -15%, DC + 25 / -20%, <1 W, <2 VA, without potential separation |
---|---|
Connectable PTC resistors | 1...6 PTC according DIN VDE V 0898-1-401 (formerly DIN 44081/82) |
Switching poin | <4000 Ω |
Output relay | 1 change-over-contact (co) |
Type of contact | Type 2 (see general technical information) |
Test conditions | see general technical information |
Rated ambient temperature | -20 ... + 55 ° C |
Dimensions h x w x d | Design C: 72 x 33 x 60 [mm] |
Attachment | on 35 mm DIN rail according to EN 60 715 or screws M4 |
Protection Housing/Terminals | IP30 / IP20 |
Weight | approx. 120 g |
