Произвођач: TEXA industries

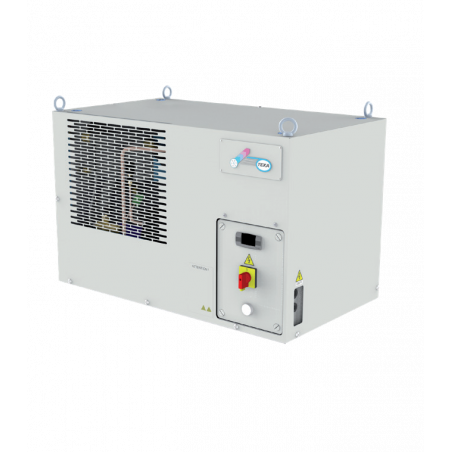

ТЦО31-41 Миницхиллер ХП Индустријски расхладници уља

TCO31-41 Minichiller HP

Industrial oil chillers

AXIAL FAN
Axial fan, complete with thermal cut-out and safety grille.
HYDRAULIC CIRCUIT
Hydraulic circuit with gear pump without tank, with maximum available pressure 20 bar, 0-25 bar pressure gauge, regulation temperature sensor. Hydraulic safety with safety low- and high-pressure pressure switch.
ELECTRICAL PANEL
With main breaker, fused motor protection with LED visual fault indicator, voltage presence light.
MANAGEMENT AND CONTROL
The TX110 control unit manages the chiller's operation, providing warnings including high/low temperature alarms and a general serious fault alarm, with the display indicating if this refers to the refrigeration or hydraulic circuit. An on-off contact allows the machine to be switched on remotely. Control disconnect switch for switching on the machine.
PAINT/COATING
Standard colour: RAL 7035 textured.
MAIN ACCESSORIES
LTA - Operation at low ambient temperatures
FP - Polyurethane air filter
RU - Castors
TD - Differential fluid temperature management (two sensors)
BGC - Hot gas bypass for +/- 1 K temperature precision
FL - Customer flow switch
- Non-standard paint/coating
- Satin AISI 304 stainless steel framework
STRUCTURE
In powder-coated steel sheet, RAL 7035 textured finish. Easily removed panels
COMPRESSOR
Hermetic reciprocating compressor, cooled by the refrigerant, complete with thermal cut-out.
REFRIGERATION CIRCUIT
Complete with charging port, drier filter, expansion valve, high- and low-pressure safety pressure switch, thermostatic valve. R134a refrigerant.
EVAPORATOR
Brazed stainless-steel plate model.
AIR CONDENSER
Finned high-efficiency copper tube condensing coil, complete with safety grille.
