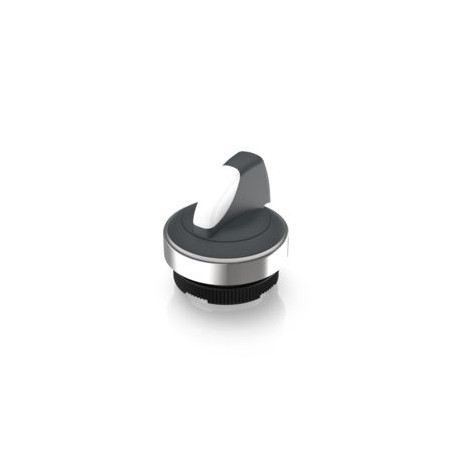

High-durability rotary selector switch. The white part of the switch is translucent and can be illuminated if needed. Colored LED illumination is available as an option.
Illumination capability | Switching function | Rotation angle | Catalog number |
YES | Momentary | 1 x 40° | 1.30.282.001/2201 |
YES | Momentary | 2 x 40° | 1.30.282.026/2201 |
YES | Constant | 1 x 90°, L-shaped | 1.30.282.101/2201 |
YES | Constant | 1 x 90°, V-shaped | 1.30.282.201/2201 |
YES | Constant | 2 x 60° | 1.30.282.301/2201 |
Dimensions | |
Collar diameter | 31.3mm |
Height | 12.2mm |
Button hole | 22.3mm |
Mechanical Properties | |
Mounting | Threaded |
Button type | Momentary |
Tightening torque | 1.2Nm |
Button travel | 4mm |
Maximum force | 100 N |
Others | |
Operating temperature range | -40 – 80°C |
IP rating (front side) | IP65 |
ROHS | Yes |
REACH | Yes |
