Произвођач: Sensata

RS и QS прекидачи са два и четири смера

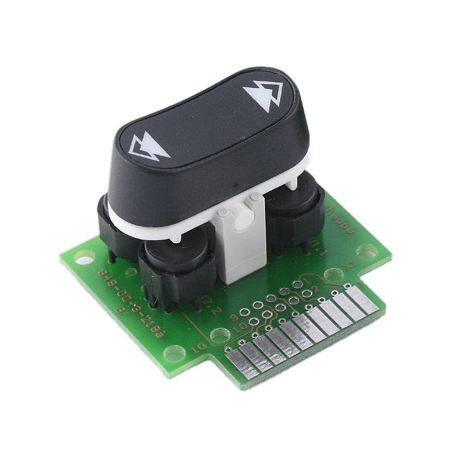

The Rocker Switch Modules RS1 and RS2 are designed for installation in front panels, multifunctional grips, or other switching units.

Features

  • RS1
    This module is a standard rocker switch
  • RS2
    RS2 offers the dual-switch function in both directions
  • QS1
    This module is a quadruple switch similar to a "mirror switch," composed of four K12 switches, designed for 4 directional switch functions (e.g., up, down, left, right)
  • QS2
    This module is similar to QS1 but features a dual-switch function, consisting of eight K12 switches for additional functions in each direction


Type RS1
RS2
QS1
QS2		 two K12 switches, one switching function per direction
four K12 switches, two switching functions per direction
four K12 switches, one switching function per direction
eight K12 switches, two switching functions per direction
Dimensions RS
QS		 43 x 40.7 x 27.55 mm
58.9 x 43 x 27.5 mm
Lifespan > 1 million cycles
Operating Temperature - 25°C to 85°C
Storage Temperature - 40°C to 85°C
IP Protection IP 65
Мање
Опширније

Пошаљите упит

Да ли вас занима овај производ? Да ли су вам потребне додатне информације или појединачне цене?

Контактирајте нас
Питајте производ close
Хвала вам што сте послали поруку. Одговорићемо у најкраћем могућем року.
Питајте производ close
Прегледајте
пошаљите упит

Додај у листу жеља

морате бити пријављени

The Rocker Switch Modules RS1 and RS2 are designed for installation in front panels, multifunctional grips, or other switching units.

Features

  • RS1
    This module is a standard rocker switch
  • RS2
    RS2 offers the dual-switch function in both directions
  • QS1
    This module is a quadruple switch similar to a "mirror switch," composed of four K12 switches, designed for 4 directional switch functions (e.g., up, down, left, right)
  • QS2
    This module is similar to QS1 but features a dual-switch function, consisting of eight K12 switches for additional functions in each direction


Type RS1
RS2
QS1
QS2		 two K12 switches, one switching function per direction
four K12 switches, two switching functions per direction
four K12 switches, one switching function per direction
eight K12 switches, two switching functions per direction
Dimensions RS
QS		 43 x 40.7 x 27.55 mm
58.9 x 43 x 27.5 mm
Lifespan > 1 million cycles
Operating Temperature - 25°C to 85°C
Storage Temperature - 40°C to 85°C
IP Protection IP 65
